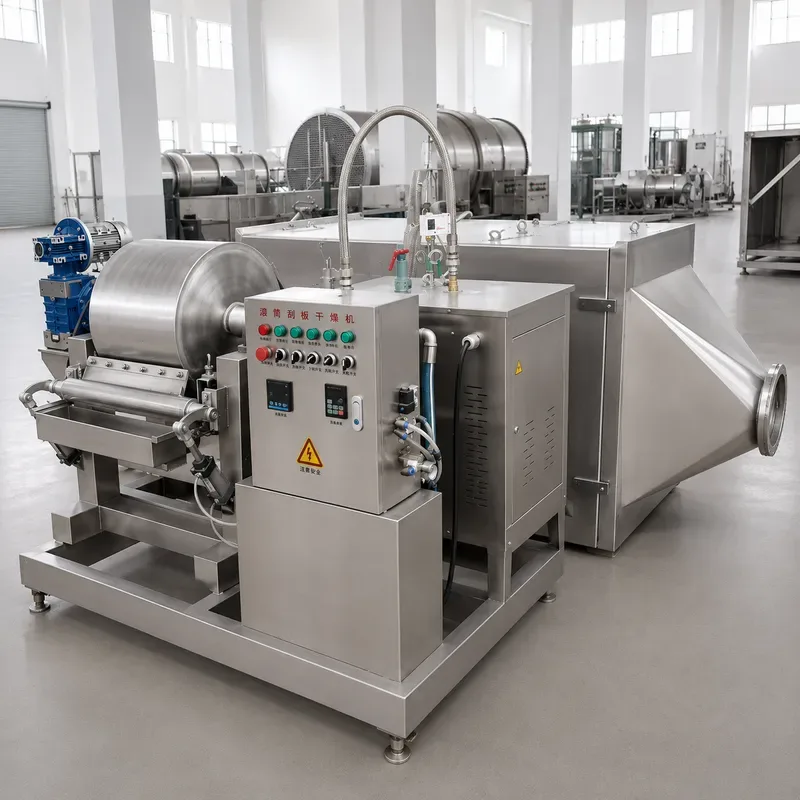

Drum Scraper Dryer
Single- or double-drum scraper dryer that conduction-dries a thin film of liquid or viscous material with high thermal efficiency.
Overview
The drum scraper dryer is an internally heated, conductive rotary continuous dryer. The rotating drum picks up a thin film of material from a trough beneath it; heat conducts through the drum wall to the film to evaporate its moisture, and a scraper knife removes the dried film into a screw conveyor for collection.
Features
- High thermal efficiency of 70-80%, since heat transfer is by conduction
- Large operating flexibility: feed concentration, film thickness, medium temperature and drum speed all adjustable
- Short drying time of 10-300 seconds, suitable for heat-sensitive materials
- High drying rate from a thin 0.3-1.5 mm film, with evaporation of 20-70 kg H2O/m²·h
- Available as single- or double-drum and can run under vacuum
Working Principle
The drum rotates through a material trough and picks up a thin film on its surface. The heating medium inside conducts heat through the drum wall to the film, evaporating the moisture. The dried film is lifted off by a scraper knife mounted against the drum surface and falls to a screw conveyor below, which gathers the dry product for packaging.
Technical Specifications
| Model | HG-600 | HG-700 | HG-800 | HG-1000 | HG-1200 | HG-1400 | HG-1600 | HG-1800 | HG-1800A |
|---|---|---|---|---|---|---|---|---|---|
| Drum Size | Φ600×800 | Φ700×1000 | Φ800×1200 | Φ1000×1400 | Φ1200×1500 | Φ1400×1600 | Φ1600×1800 | Φ1800×2000 | Φ1800×2500 |
| Effective Heating Area (m²) | 1.12 | 1.65 | 2.26 | 3.30 | 4.24 | 5.28 | 6.79 | 8.48 | 10.60 |
| Drying Capacity (kg H2O/m²·h) | 40-70 | 60-90 | 90-130 | 130-190 | 160-250 | 210-310 | 270-400 | 330-500 | 420-630 |
| Steam Consumption (kg/h) | 100-175 | 150-225 | 225-325 | 325-475 | 400-625 | 525-775 | 675-1000 | 825-1250 | 1050-1575 |
| Motor Power (kW) | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | 11 | 15 | 18.5 |
| Overall Dimensions (mm) | 1700×800×1500 | 2100×1000×1800 | 2500×1100×1980 | 2700×1300×2250 | 2800×1500×2450 | 3150×1700×2800 | 3350×1900×3150 | 3600×2050×3500 | 4100×2050×3500 |
| Weight (kg) | 850 | 1210 | 1700 | 2100 | 2650 | 3220 | 4350 | 5100 | 6150 |
Applications
Liquid or relatively viscous materials in the chemical, dye, pharmaceutical, food and metallurgical industries.
