Multi-Layer Belt Dryer
Continuous multi-layer belt dryer for large-scale drying of slow-drying, high-moisture materials. Compact footprint, low energy use and stable operation.
Overview

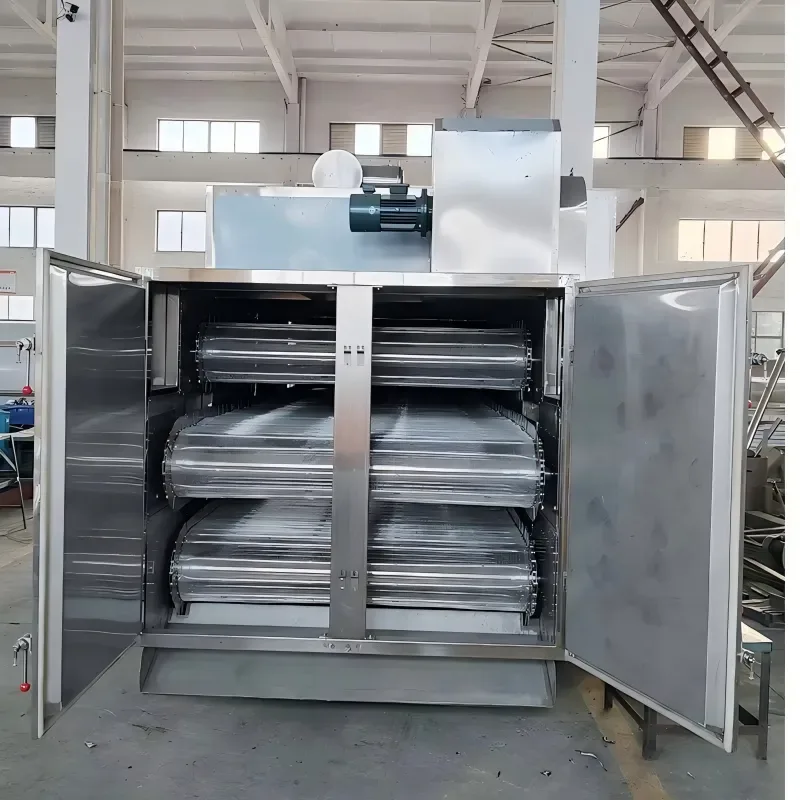

The multi-layer belt dryer is a continuous, batch-production dryer for breathable sheet, strip and granular materials. Stacking several drying belts in one frame gives a large drying area in a compact footprint, making it ideal for large-scale production of slow-drying, high-moisture, heat-sensitive products such as dehydrated vegetables, catalysts and herbal slices.
Features
- Compact structure with a small footprint and large effective drying area
- Simple operation, easy maintenance and stable continuous running
- Hot-air circulation form can be tailored to the material's drying curve
- High efficiency and energy savings through extensive air recirculation
- Suited to large-volume, centralised, continuous production
Working Principle

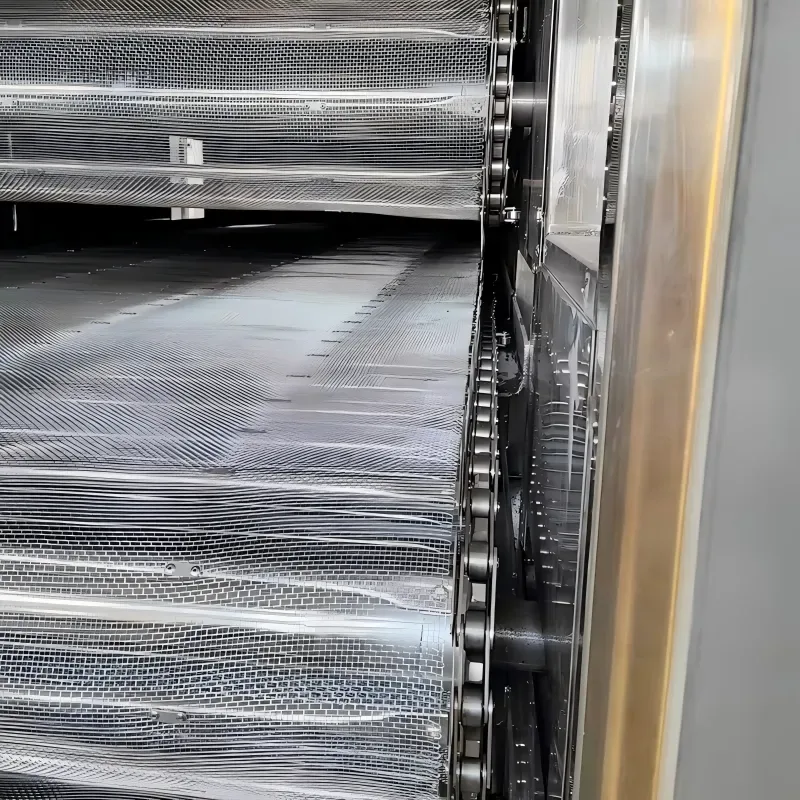

Material is fed onto stacked mesh belts that move slowly through independent hot-air units. Circulating hot air passes through each material layer for heat and mass transfer, and saturated air is exhausted by humidity-removal fans. Routing the product across multiple layers extends residence time without increasing floor space.
Technical Specifications
| Model | DW 3-1.2-8 | DW 3-1.2-10 | DW 3-1.6-8 | DW 3-1.6-10 | DW 3-2-8 | DW 3-2-10 |
|---|---|---|---|---|---|---|
| Number of Units | 4X3 | 5X3 | 4X3 | 5X3 | 4X3 | 5X3 |
| Drying Section Length (m) | 24 | 30 | 24 | 30 | 24 | 30 |
| Material Layer Thickness (mm) | 10-80 | |||||
| Operating Temperature (℃) | 50-140 | |||||
| Steam Pressure (MPa) | 0.2-0.8 | |||||
| Steam Consumption (kg/h) | 360-600 | 420-720 | 450-840 | 480-960 | 480-960 | 630-1350 |
| Heat Exchange Area (m²) | 816 | 1020 | 1056 | 1320 | 1344 | 1680 |
| Drying Intensity (kg H2O/h) | 150-450 | 220-550 | 240-600 | 280-750 | 280-750 | 350-900 |
| Inner Unit Total Power (kW) | 30.8 | 37.4 | 42 | 51 | 56 | 68 |
| Outer Unit Total Power (kW) | 35.3 | 41.9 | 46.5 | 55.5 | 60.5 | 72.5 |
| Overall Dimensions (m) | 9.77X2.2X4.5 | 11.77X2.2X4.5 | 9.77X2.6X4.5 | 11.77X2.6X4.7 | 9.77X3.06X4.9 | 11.77X3.06X4.9 |
| Total Weight (kg) | 4800X3 | 5780X3 | 5400X3 | 6550X3 | 6350X3 | 7800X3 |
Applications
Metallurgical additives, chemicals, food, packaging materials, dehydrated vegetables, catalysts and herbal slices.
