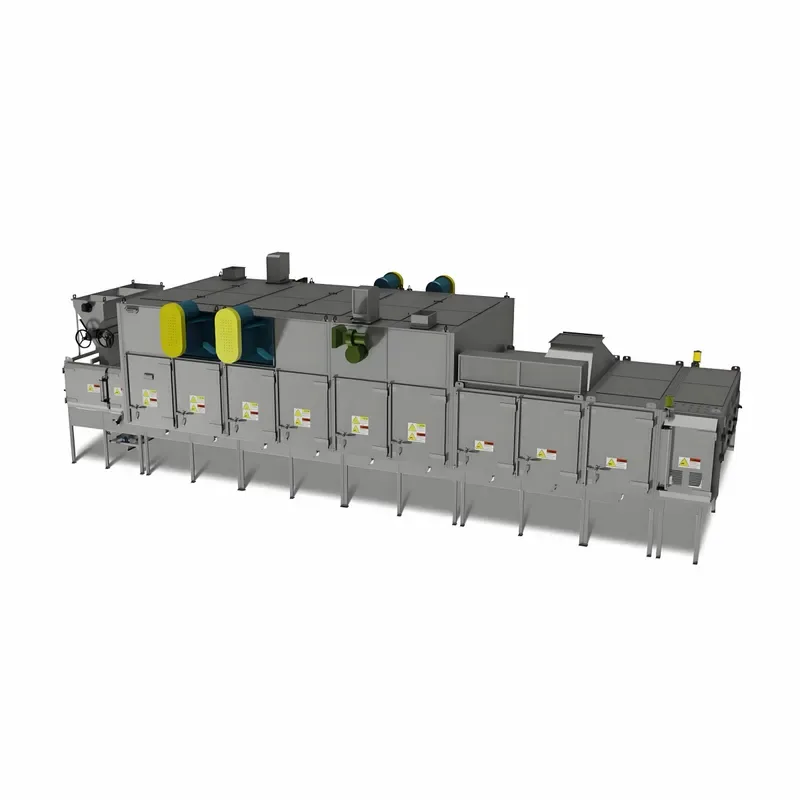

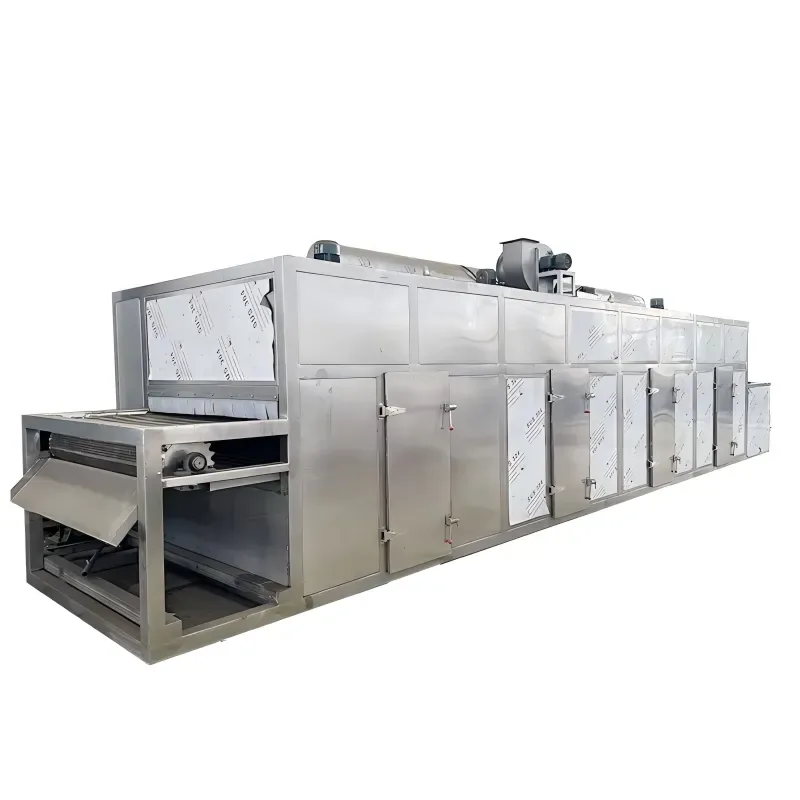

Single-Layer Belt Dryer
Continuous through-flow belt dryer for sheet, strip and granular materials. Fast, energy-efficient drying ideal for dehydrated vegetables and herbal slices.
Overview
This continuous through-flow belt dryer handles breathable sheet, strip and granular materials. It is especially suited to high-moisture, temperature-sensitive products such as dehydrated vegetables and medicinal slices, offering fast drying, high evaporation intensity and excellent product quality.
Features
- Adjustable air volume, heating temperature, residence time and feed rate
- Optional belt-washing and material-cooling systems
- Most of the air is recirculated for significant energy savings
- Unique air-distribution device ensures uniform heat flow
- Heat source can be steam, thermal oil, electricity or a coal/oil-fired hot-air stove
Working Principle
The feeder spreads material evenly onto a stainless-steel wire-mesh belt that carries it through the dryer. The machine is built from several independent hot-air units; hot air passes through the material layer to complete heat and mass transfer and remove moisture, while a humidity-removal fan exhausts saturated air. Belt speed is adjustable to the material.
Technical Specifications
| Model | DW-1.2-8 | DW-1.2-10 | DW-1.6-8 | DW-1.6-10 | DW-2-8 | DW-2-12 |
|---|---|---|---|---|---|---|
| Number of Units | 4 | 5 | 4 | 5 | 4 | 6 |
| Belt Width (m) | 1.2 | 1.2 | 1.6 | 1.6 | 2 | 2 |
| Drying Section Length (m) | 8 | 10 | 8 | 12 | 8 | 12 |
| Material Layer Thickness (mm) | 10-80 | |||||
| Operating Temperature (℃) | 60-130 | |||||
| Steam Pressure (MPa) | 0.2-0.8 | |||||
| Steam Consumption (kg steam/kg H2O) | 2.2-2.5 | |||||
| Drying Intensity (kg H2O/m²·h) | 6-20 | |||||
| Fan Total Power (kW) | 3.3 | 4.4 | 6.6 | 8.8 | 12 | 16 |
| Total Equipment Power (kW) | 4.05 | 5.15 | 7.35 | 9.55 | 13.1 | 17.1 |
Applications
Dehydrated vegetables, granulated feed, MSG, coconut flakes, organic plastics, synthetic rubber, acrylic fibers, pharmaceuticals, herbal medicines, plastic parts and electronic component curing.
