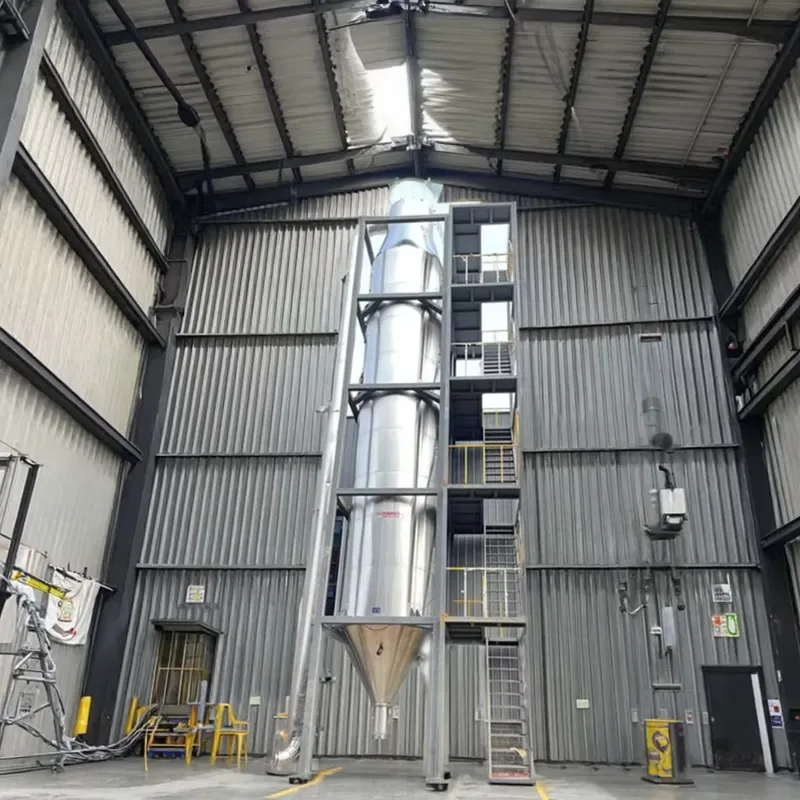

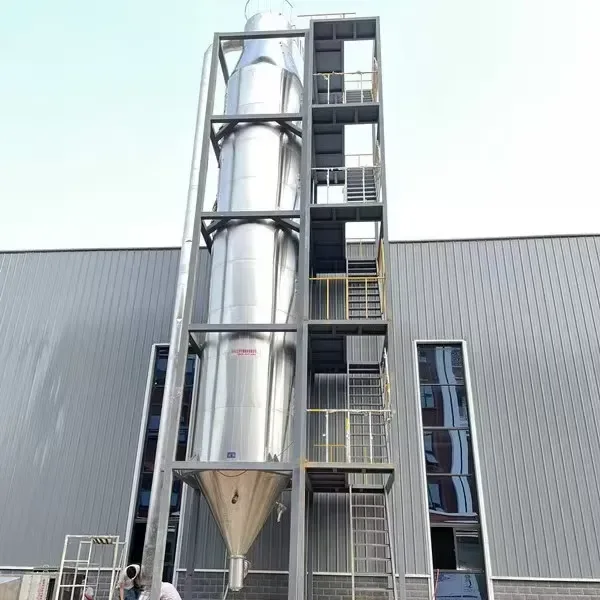

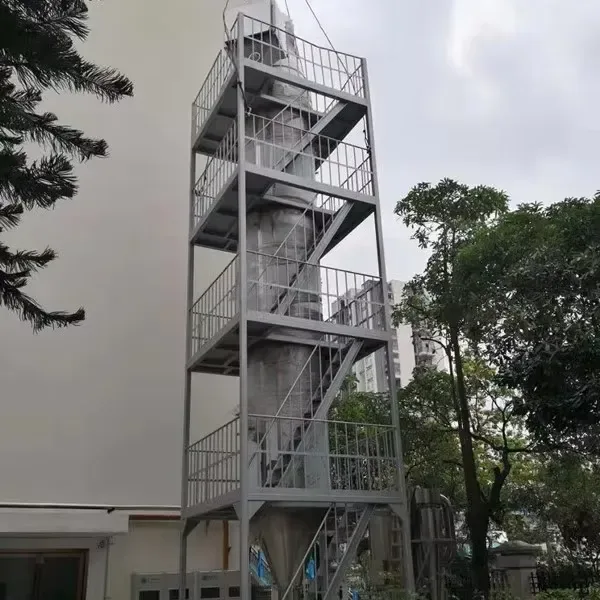

Pressure Spray Dryer
Pressure-nozzle spray dryer that dries and granulates in one step, producing uniform spherical granules with good flow and solubility.
Overview
The pressure spray dryer completes drying and granulation at the same time. By adjusting the feed-pump pressure, flow rate and nozzle size, it produces spherical granules of a defined size, making it equally suited to hot-air drying and cold-air granulation.
Features
- Atomization evaporates 95-98% of moisture in seconds, ideal for heat-sensitive materials
- Produces uniform spherical granules with good flow, solubility and purity
- Versatile: hot-air drying or cold-air granulation for a wide material range
- Simple, stable operation that is easy to automate
- SUS304 contact parts with an insulated, instrumented tower
Working Principle
Feed liquid is delivered at high pressure through a diaphragm pump and sprayed into droplets that descend co-currently with hot air. Most of the powder is collected at the tower base, while fines are separated by a cyclone and the exhaust is drawn off by a fan, giving 96-98% recovery. A steam or electric heater provides infinitely adjustable inlet temperature.
Technical Specifications
| Model | 50 | 100 | 150 | 200 | 300 | 500 | 1000 |
|---|---|---|---|---|---|---|---|
| Water Evaporation (kg/h) | 50 | 100 | 150 | 200 | 300 | 500 | 1000 |
| Overall Dimensions Φ×H (mm) | 1600×8900 | 2000×11500 | 2400×13500 | 2800×14800 | 3200×15400 | 3800×18800 | 4600×22500 |
| High-Pressure Pump Pressure (MPa) | 2-10 | ||||||
| Power (kW) | 8.5 | 14 | 22 | 24 | 30 | 82 | 30 |
| Inlet Air Temperature (℃) | 300-350 | ||||||
| Product Moisture (%) | <5 | ||||||
| Material Recovery (%) | >97 | ||||||
| Electric Heating (kW) | 75 | 120 | 150 | — | — | — | — |
| Electric + Steam (MPa + kW) | 0.5+54 | 0.6+90 | 0.6+108 | — | — | — | — |
| Hot-Air Furnace (kcal/h) | 100000 | 150000 | 200000 | 300000 | 400000 | 500000 | 1200000 |
Applications
Chemicals such as catalysts, resins, detergents and dyes; foods such as amino acids, proteins, starch and dairy; pharmaceuticals such as herbal medicines and antibiotics; ceramics; and spray granulation of fertilizers and alumina.
