Box-Type Vacuum Dryer
Round (YZG) and square (FZG) box-type vacuum dryers for low-temperature, oxygen-free drying of heat-sensitive, easily oxidised or solvent-laden materials.
Overview

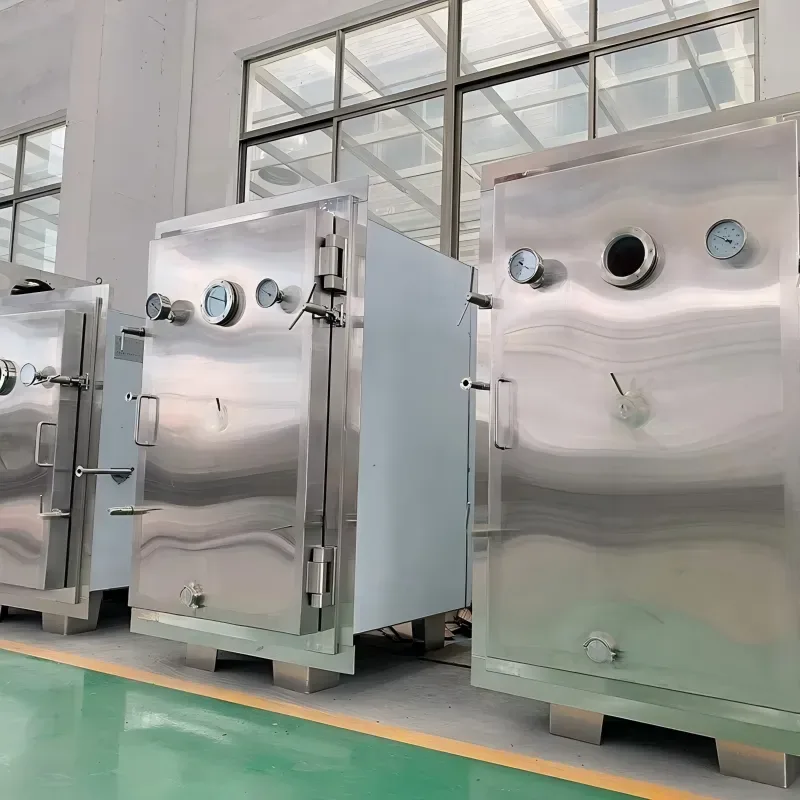

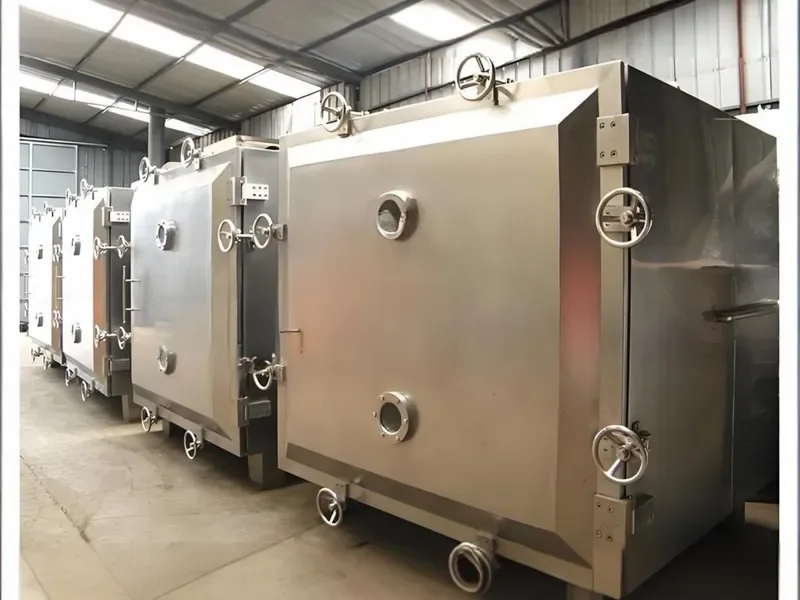

The box-type vacuum dryer dries materials on heated trays inside a sealed chamber held under vacuum. Available in round (YZG) and square (FZG) forms, it is ideal for heat-sensitive, easily oxidised and easily decomposed products, and for materials whose solvents must be recovered or whose residual moisture must be very low.
Features
- Low-temperature drying under vacuum protects heat-sensitive products
- Oxygen-free environment suits easily oxidised and flammable materials
- Optional condenser allows solvent recovery
- Static tray drying gives gentle, contamination-free handling
- Achieves very low residual moisture
Working Principle

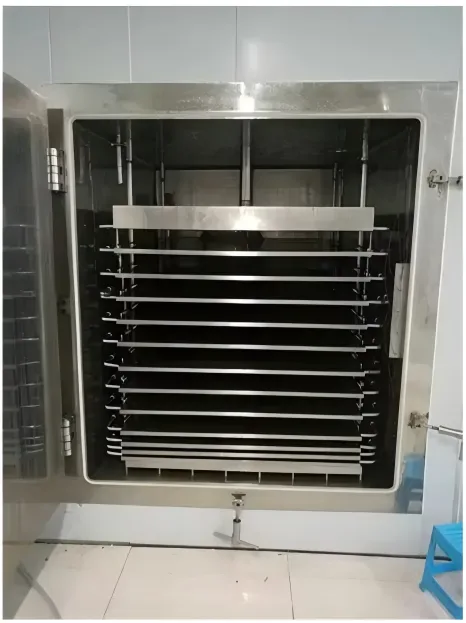

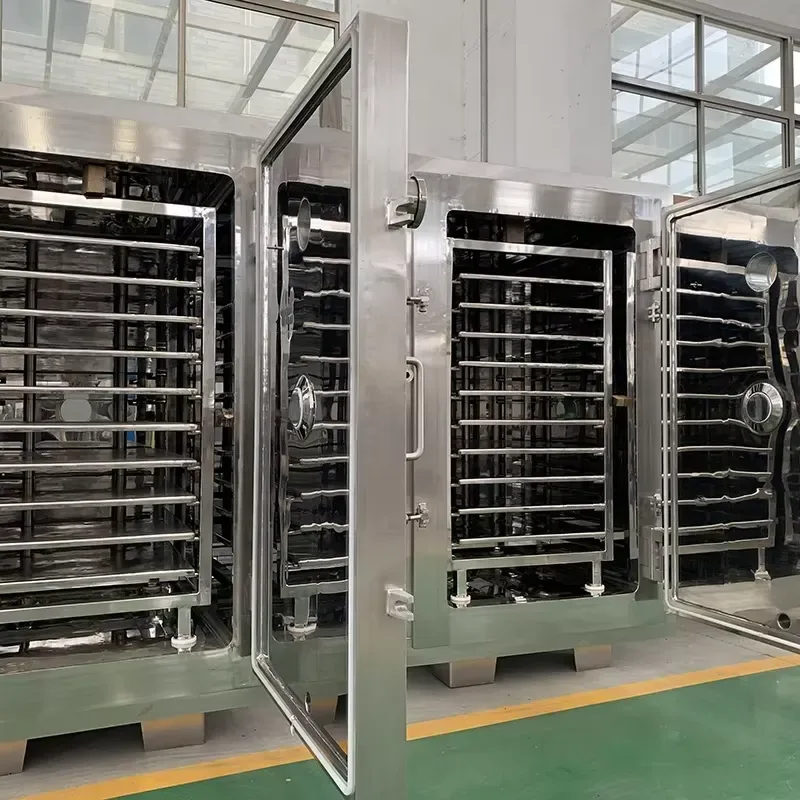

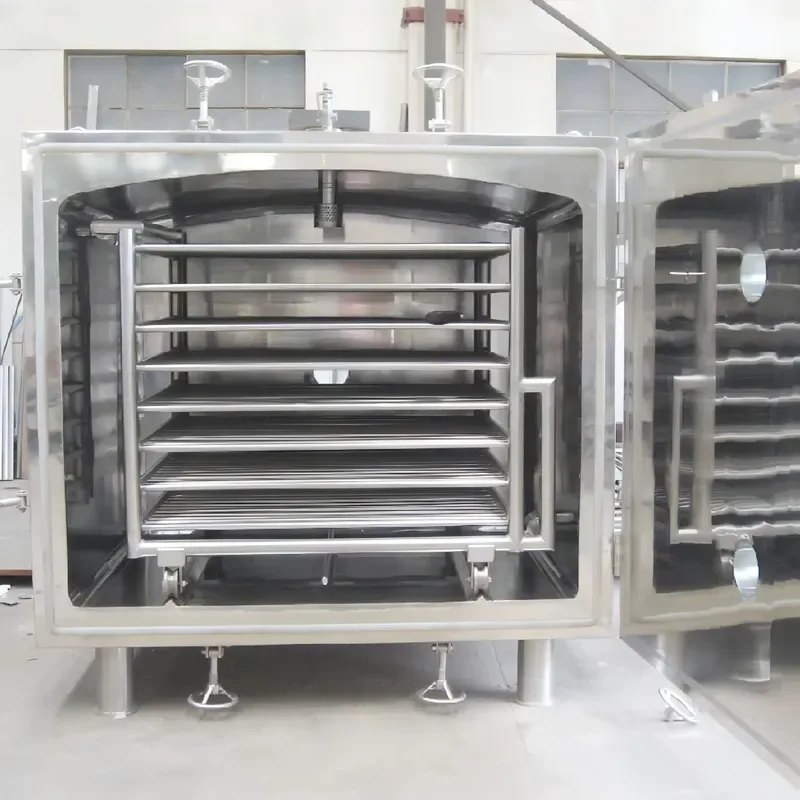

Trays of material rest on hollow heating shelves; steam, hot water or thermal oil circulates through the shelves to heat the product by conduction. Under vacuum the boiling point of moisture falls, so water and solvents evaporate at low temperature and are drawn off by the vacuum system, optionally passing through a condenser for recovery.
Technical Specifications
| Model | YZG-600 | YZG-800 | YZG-1000 | YZG-1400A | FZG-10 | FZG-15 | FZG-20 |
|---|---|---|---|---|---|---|---|
| Chamber Inner Dimensions (mm) | φ600×976 | φ800×1247 | φ1000×1527 | φ1400×2054 | 1500×1060× 1220 | 1500×1400 ×1220 | 1500×1800 ×1220 |
| Chamber Outer Dimensions (mm) | 1135×810× 1020 | 1700×1045× 1335 | 1693×1190× 1500 | 2380×1675× 1920 | 1924×1720 ×1513 | 1513×1924 ×2060 | 1924×2500 × 1513 |
| Number of Shelves | 4 | 4 | 6 | 8 | 5 | 8 | 12 |
| Shelf Spacing (mm) | 81 | 82 | 102 | 102 | 122 | 122 | 122 |
| Tray Size (mm) | 310×600×45 | 520×410×45 | 520×410×45 | 460×640×45 | 460×640 ×45 | 460×640 ×45 | 460×640 ×45 |
| Number of Trays | 4 | 8 | 12 | 32 | 20 | 32 | 48 |
| Shelf Tube Working Pressure (MPa) | ≤0.784 | ≤0.784 | ≤0.784 | ≤0.784 | ≤0.784 | ≤0.784 | ≤0.784 |
| Shelf Operating Temperature (℃) | 35-150 | 35-150 | 35-150 | 35-150 | 35-150 | 35-150 | 35-150 |
| Chamber No-Load Vacuum (MPa) | -0.1 | -0.1 | -0.1 | -0.1 | -0.1 | -0.1 | 0.1 |
| Chamber Weight (kg) | 250 | 600 | 800 | 1400 | 1400 | 2100 | 3200 |
Applications
Pharmaceuticals, fine chemicals, foodstuffs, dyes and other powder or granular materials requiring gentle, oxygen-free or solvent-recovery drying.
