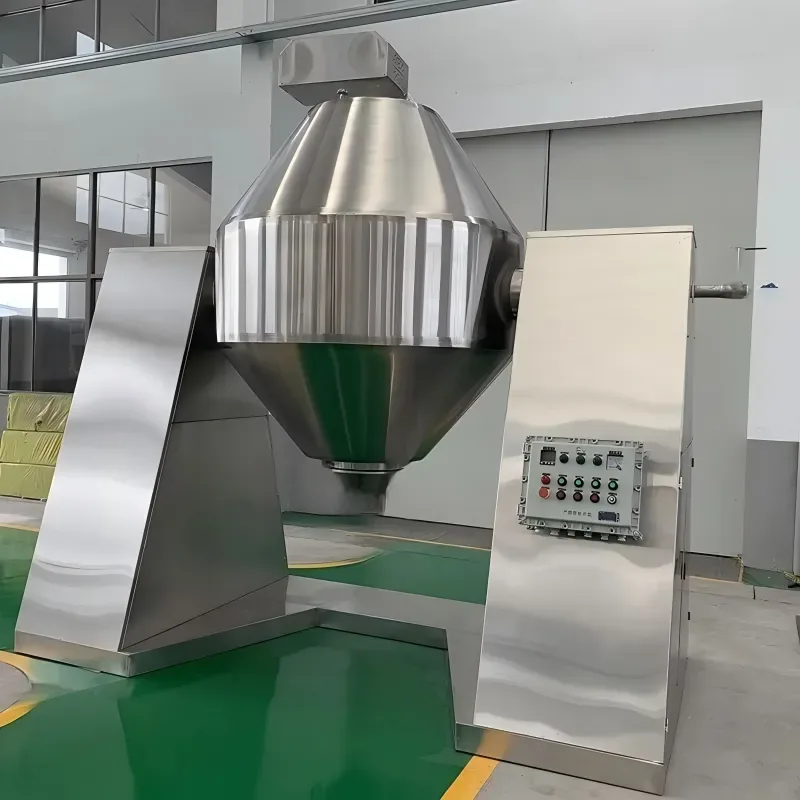

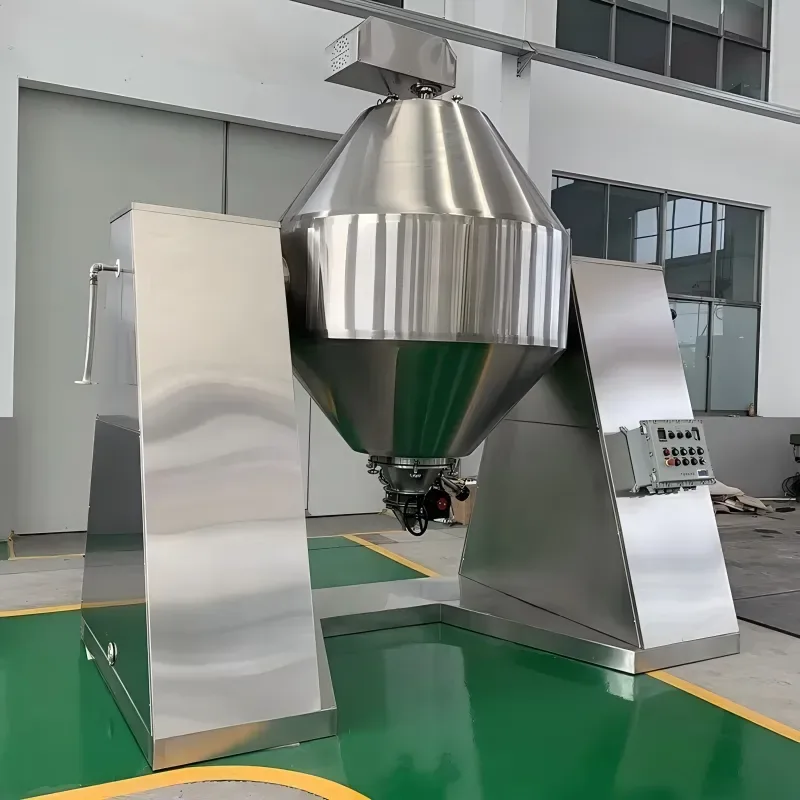

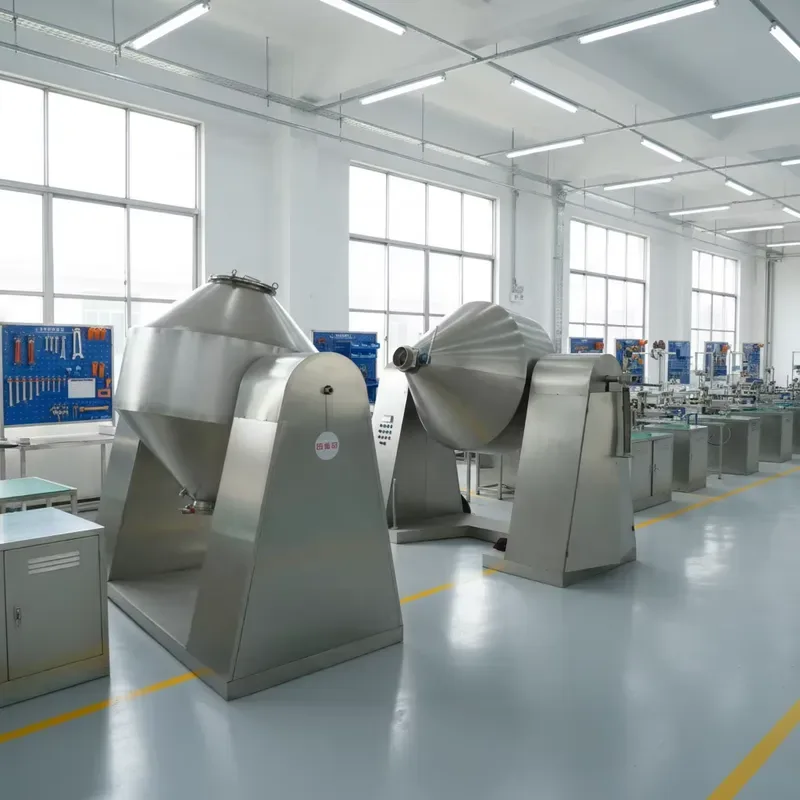

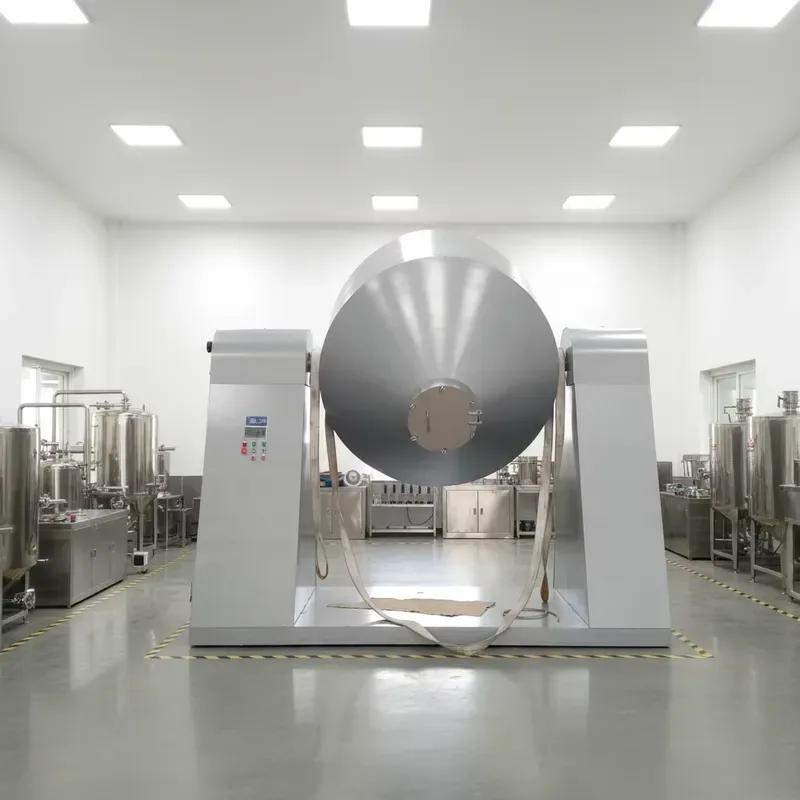

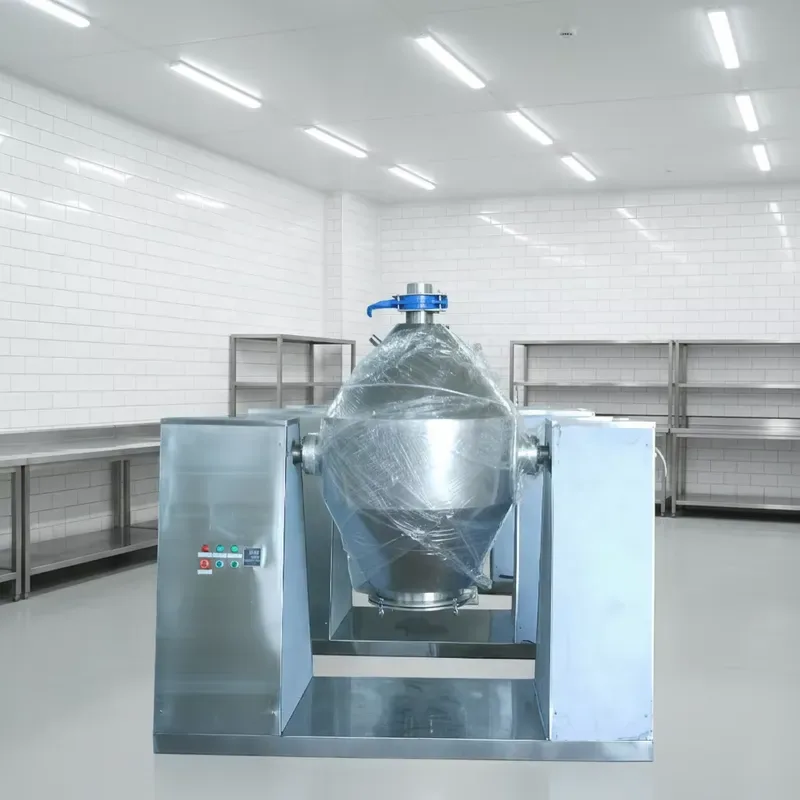

Double-Cone Rotary Vacuum Dryer
Rotating double-cone vacuum dryer that mixes and dries in one unit, with high heat transfer and uniform, low-temperature drying for heat-sensitive materials.
Overview

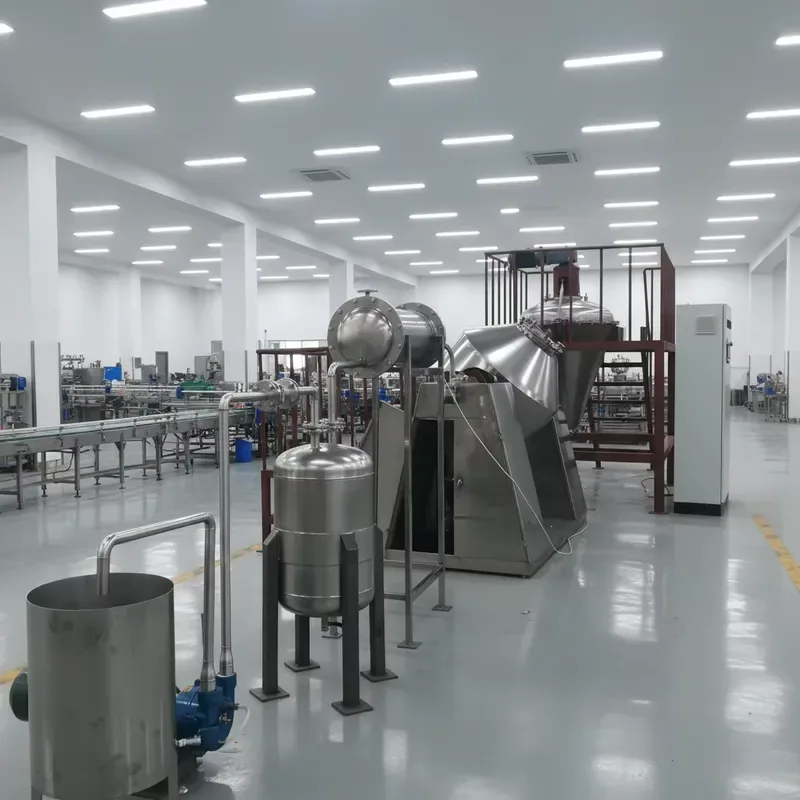

The double-cone rotary vacuum dryer combines mixing and drying in a single rotating vessel. Paired with a condenser and vacuum pump it forms a complete vacuum-drying system (the condenser can be omitted when solvent recovery is not required). The simple internal structure cleans easily, discharges fully and operates with low labour, while rotation keeps material from caking on the wall for a high heat-transfer coefficient and fast, even drying.
Features
- Mixing and drying integrated in one rotating double-cone vessel
- No material build-up on the wall, giving a high heat-transfer rate
- Full discharge, easy cleaning and simple operation
- Low energy use with uniform, high-quality results
- Optional condenser and vacuum pump for solvent recovery
Working Principle
Under vacuum, thermal oil or hot water is fed into the jacket of the double-cone vessel; heat passes through the wall to the wet material. Vapor from the evaporating moisture is drawn off by the vacuum pump through the exhaust line. Because the vessel rotates, the material is continuously tumbled, accelerating drying and ensuring uniformity.
Technical Specifications
| Model | 100 | 350 | 500 | 750 | 1000 | 1500 | 2000 | 3500 | 4500 | 5000 |
|---|---|---|---|---|---|---|---|---|---|---|
| Tank Volume (L) | 100 | 350 | 500 | 750 | 1000 | 1500 | 2000 | 3500 | 4500 | 5000 |
| Loading Volume (L) | ≤50 | ≤175 | ≤250 | ≤375 | ≤500 | ≤750 | ≤1000 | ≤1750 | ≤2250 | ≤2500 |
| Heating Area (m²) | 1.16 | 2 | 2.63 | 3.5 | 4.61 | 5.58 | 7.5 | 11.2 | 13.1 | 14.1 |
| Rotation Speed (rpm) | 4-6 | |||||||||
| Motor Power (kW) | 0.75 | 1.1 | 1.5 | 2 | 3 | 3 | 4 | 5.5 | 7.5 | 11 |
| Footprint L×W (mm) | 2160×800 | 2260×800 | 2350×800 | 2560×1000 | 2860×1300 | 3060×1300 | 3260×1400 | 3760×1800 | 3960×2000 | 4400×2500 |
| Rotation Height (mm) | 1750 | 2100 | 2250 | 2490 | 2800 | 2940 | 2990 | 3490 | 4100 | 4200 |
| Tank Design Pressure (MPa) | -0.1-0.15 | |||||||||
| Jacket Design Pressure (MPa) | ≤0.3 | |||||||||
| Operating Temperature (℃) | Tank ≤85 Jacket ≤140 | |||||||||
| Weight (kg) | 800 | 1100 | 1200 | 1500 | 2800 | 3300 | 3600 | 6400 | 7500 | 8600 |
Applications
Vacuum drying and mixing of powder and granular materials in pharmaceuticals, food and chemicals, especially heat-sensitive materials, those needing solvent recovery, easily oxidised or hazardous materials, and products requiring very low residual volatiles.
