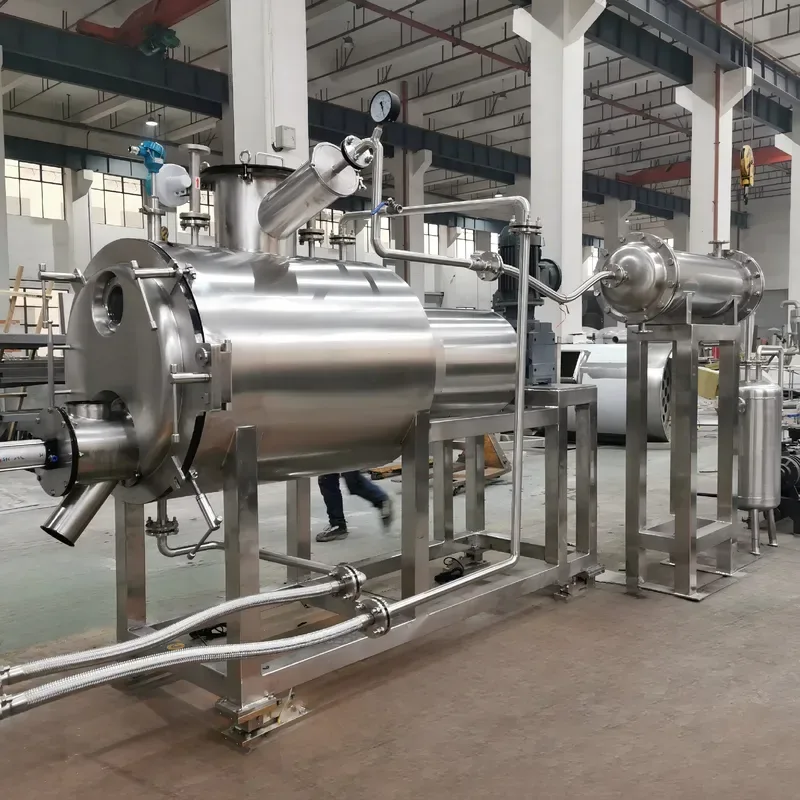

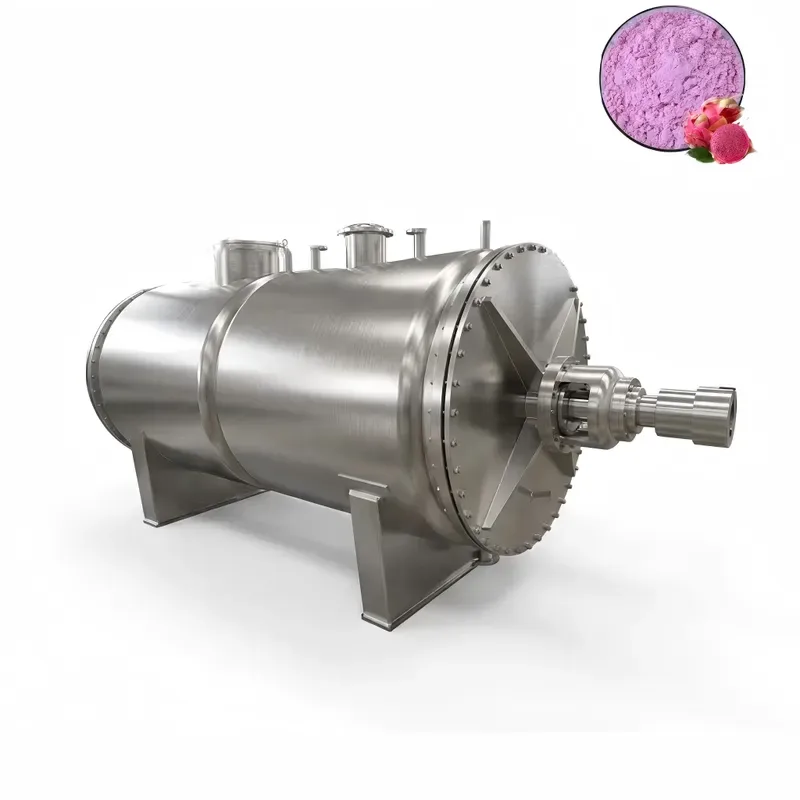

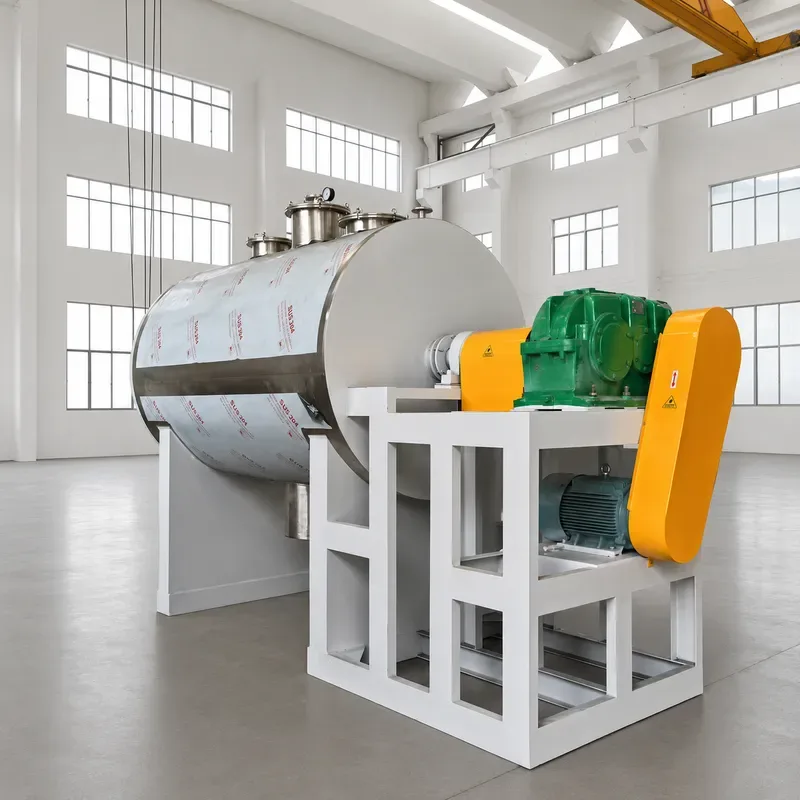

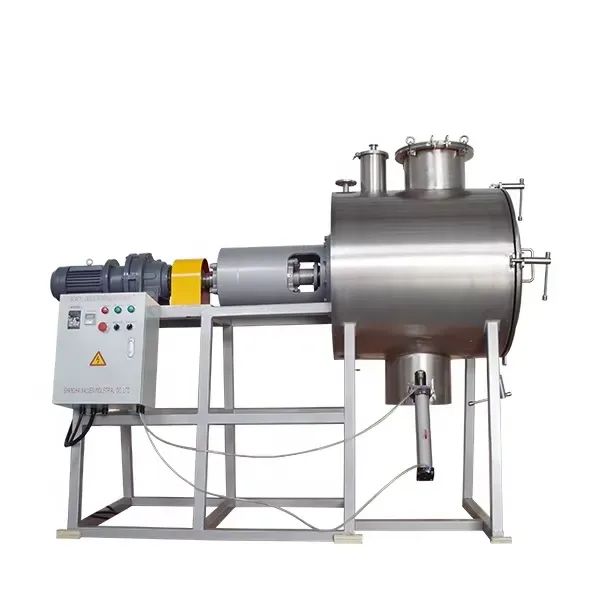

Rake Vacuum Dryer
Horizontal rake vacuum dryer with a rotating raking shaft for gentle, low-temperature drying of pastes, slurries and heat-sensitive materials.
Overview
The rake vacuum dryer is a horizontal cylindrical dryer fitted with a rotating raking (stirring) shaft. Heated through a jacket and operated under vacuum, it dries pastes, slurries and powders gently at low temperature, making it well suited to heat-sensitive, easily oxidised materials and to products whose solvents must be recovered.
Features
- Continuous raking prevents caking and exposes fresh surface for fast drying
- Jacket heating with vacuum allows gentle, low-temperature operation
- Suitable for paste, slurry and powder feeds
- Enclosed vacuum design supports solvent recovery and dust-free operation
- Even drying with thorough discharge
Working Principle
The cylindrical shell is heated through its jacket by steam, hot water or thermal oil while the chamber is held under vacuum. The rotating rake blades continuously turn and scrape the material, renewing the heat-transfer surface and preventing build-up on the wall. Under vacuum, moisture and solvents evaporate at low temperature and are drawn off by the vacuum system, optionally via a condenser.
Technical Specifications
| Model | ZB-500 | ZB-750 | ZB-1000 | ZB-1500 | ZB-2000 | ZB-3000 |
|---|---|---|---|---|---|---|
| Working Volume (L) | 300 | 450 | 600 | 900 | 1200 | 1800 |
| Heating Area (m²) | 3.2 | 4.4 | 5.1 | 6.3 | 8.1 | 10.6 |
| Stirring Speed (rpm) | 8-18 | |||||
| Power (kW) | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 |
| Jacket Design Pressure (MPa) | 0.3 | |||||
| Cylinder Internal Pressure (MPa) | -0.092 to -0.096 | |||||
Applications
Low-temperature vacuum drying of heat-sensitive, easily oxidised and solvent-bearing pastes, slurries and powders in chemicals, pharmaceuticals, foodstuffs and dyes.
