Universal Pulverizer
High-speed universal pulverizer that reduces brittle and fibrous materials by impact and shear against an interchangeable screen.
Overview

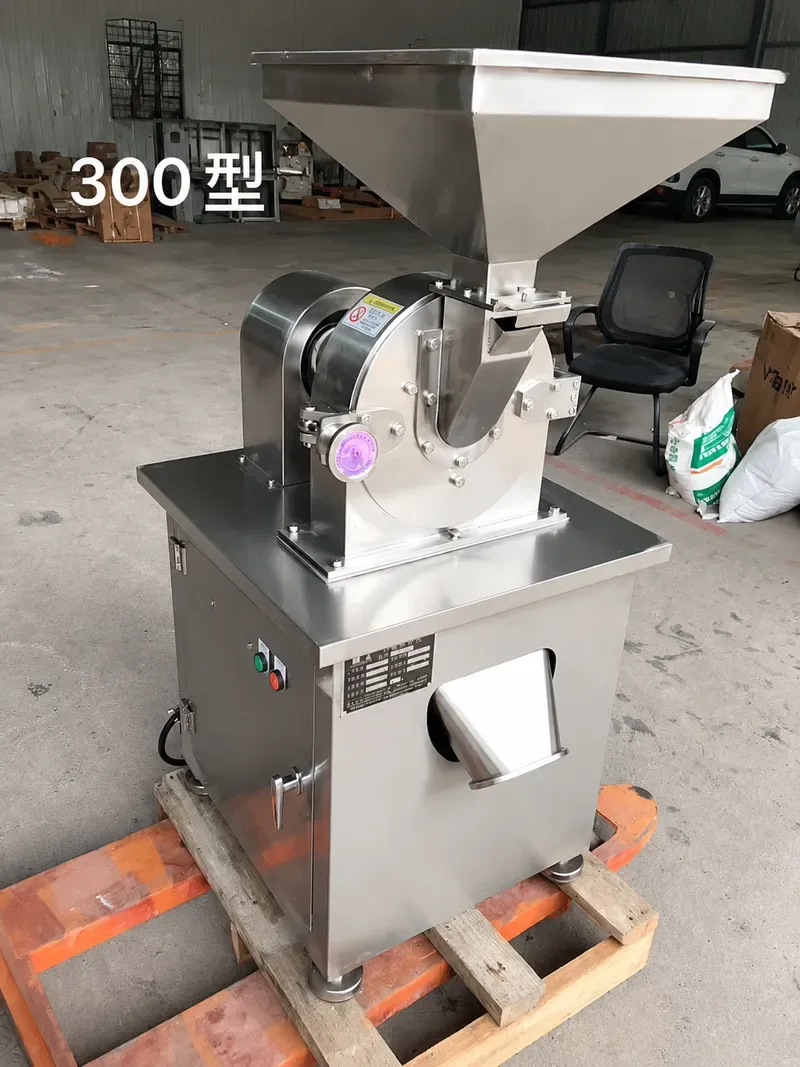

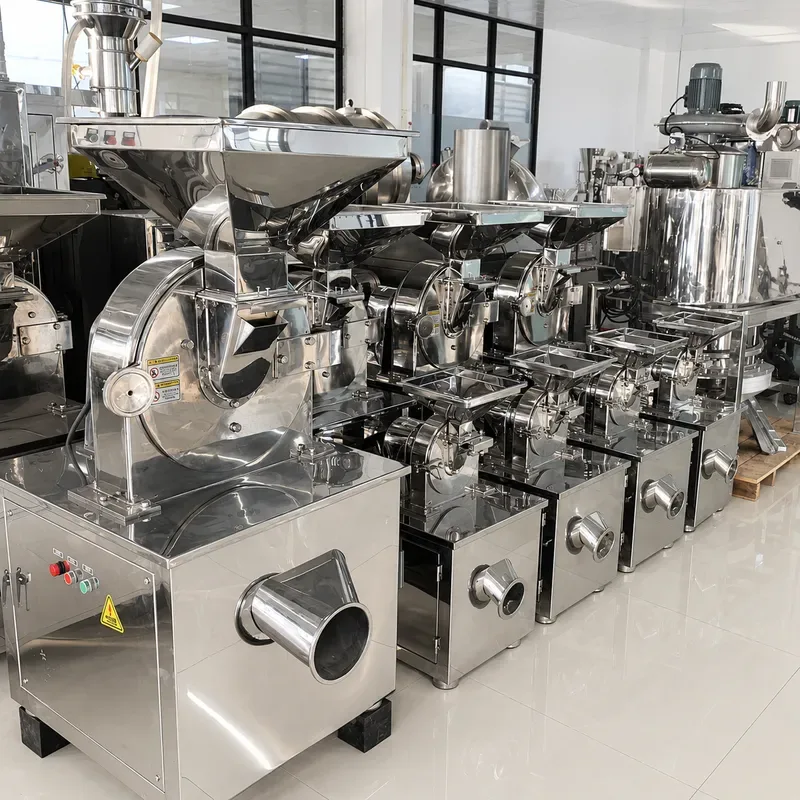

The 30B-X series universal pulverizer reduces brittle and fibrous materials with a high-speed rotor that strikes and shears the feed against a fixed liner and screen. The particle size of the product is set by the mesh of the interchangeable screen, making the machine suitable for a wide range of dry, medium-hardness materials.
Features
- High-speed impact-and-shear pulverizing
- Particle size controlled by interchangeable screens
- Stainless-steel contact parts, easy to clean
- Compact and efficient
- Suitable for brittle and fibrous materials
Working Principle
Material fed into the chamber is struck by high-speed rotating hammers or blades and sheared against the fixed liner. The fragments pass through a screen of selected mesh, which sets the final particle size, and the pulverized product is collected at the outlet.
Technical Specifications
| Model | 20B | 30B | 40B | 60B |
|---|---|---|---|---|
| Production Capacity (kg/h) | 60-150 | 100-300 | 160-800 | 500-1500 |
| Spindle Speed (r/min) | 4500 | 3800 | 3400 | 2800 |
| Feed Particle Size (mm) | 6 | 10 | 12 | 15 |
| Finished Fineness (mesh) | 60-120 | 60-120 | 60-120 | 60-120 |
| Motor Power (kW) | 4 | 5.5 | 11 | 15 |
| Weight (kg) | 250 | 320 | 550 | 680 |
| Overall Dimensions L×W×H (mm) | 350×600×1250 | 600×700×1450 | 800×900×1550 | 1000×900×1680 |
Applications
Dry, brittle or fibrous materials of medium hardness in the chemical, pharmaceutical, food and spice industries.
