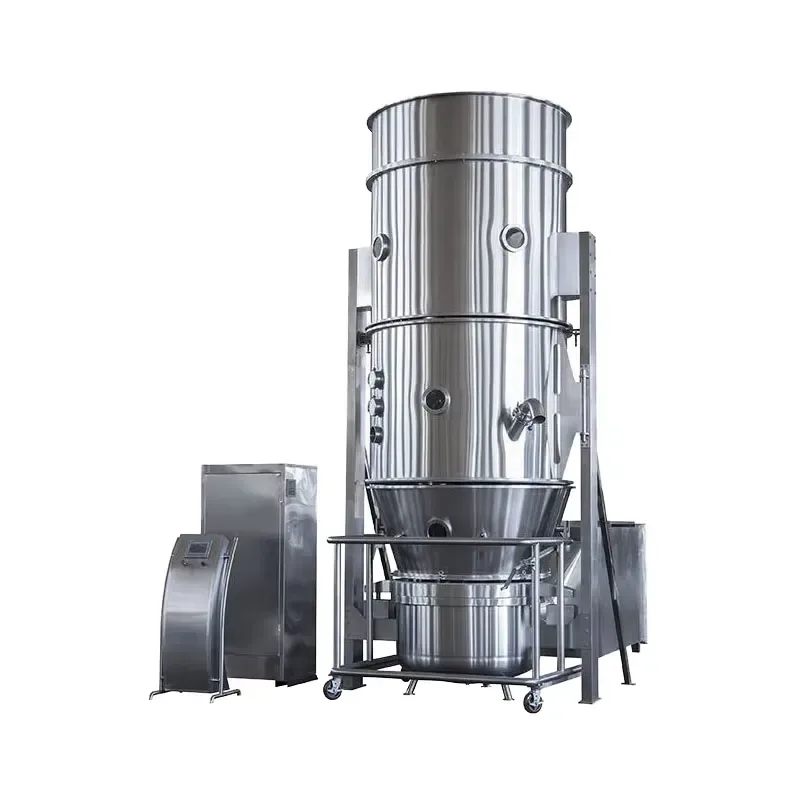

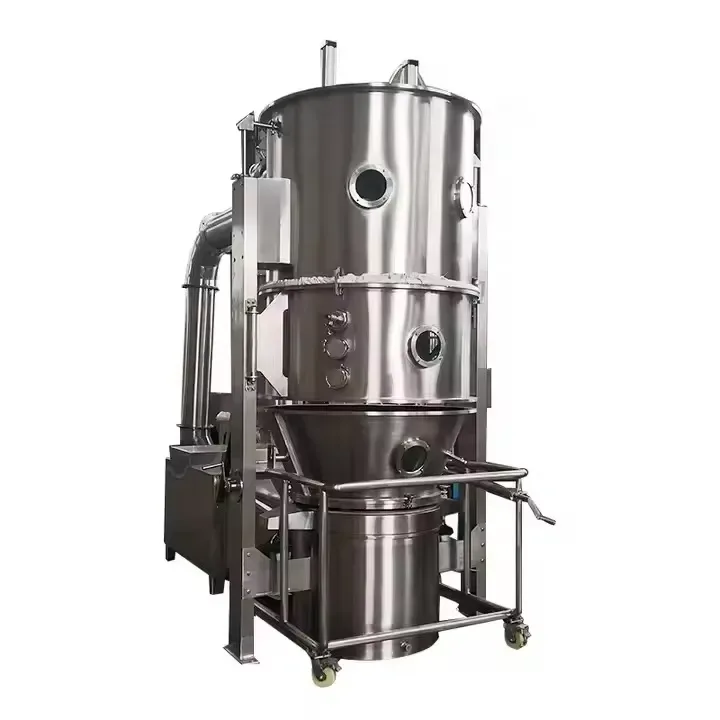

Vertical Fluid Bed Dryer
Vertical fluid bed dryer with an added drying section and closed negative-pressure operation for safe, dust-free GMP drying of powders and granules.
Overview
The vertical fluid bed dryer is used mainly to dry powder or granular materials in the pharmaceutical, food and chemical industries. Built on the high-efficiency fluid bed dryer, it adds a drying straight-section so material dries more readily.
Features
- Fluidized drying with fast heat and mass transfer
- Closed negative-pressure operation with no flying dust
- Anti-static filter material for safe operation
- No dead corners, thorough cleaning and no cross-contamination
- Meets GMP requirements
Working Principle
Like the high-efficiency fluid bed, heated air fluidizes the material under closed negative pressure, but an added drying straight-section gives the material a longer, easier drying path. Moisture evaporates into the air stream and is drawn off, while the anti-static filters keep dust contained.
Technical Specifications
| Model | 3 | 5 | 30 | 60 | 120 | 200 | 300 | 500 | 1000 |
|---|---|---|---|---|---|---|---|---|---|
| Material Container Diameter (mm) | 300 | 400 | 700 | 1000 | 1200 | 1400 | 1600 | 1800 | 2200 |
| Volume (L) | 12 | 22 | 100 | 220 | 420 | 670 | 1000 | 1500 | 2500 |
| Production Capacity, Min (kg/batch) | 1.5 | 4 | 15 | 30 | 80 | 100 | 150 | 250 | 500 |
| Production Capacity, Max (kg/batch) | 4 | 6 | 36 | 72 | 140 | 240 | 360 | 600 | 1100 |
| Steam Consumption (kg/batch) | 12 | 23 | 70 | 140 | 211 | 282 | 366 | 465 | 800 |
| Compressed Air Volume (M³/min) | 0.3 | 0.3 | 0.3 | 0.6 | 0.6 | 0.9 | 0.9 | 0.9 | 1.5 |
| Fan Power (kW) | 2.2 | 4 | 5.5 | 11 | 18.5 | 22 | 30 | 45 | 75 |
| Inlet Air Temperature (℃) | ≤120 | ||||||||
| Material Yield (%) | >99 | ||||||||
| Operating Time (min) | 15-30 | ||||||||
| Final Moisture Content (%) | 0.2 | ||||||||
| Noise (dB) | ≤75 | ||||||||
| Main Unit Height (mm) | 2100 | 2300 | 2500 | 3000 | 3300 | 3800 | 4000 | 4800 | 6200 |
Applications
Powder or granular materials in the pharmaceutical, food and chemical industries.
