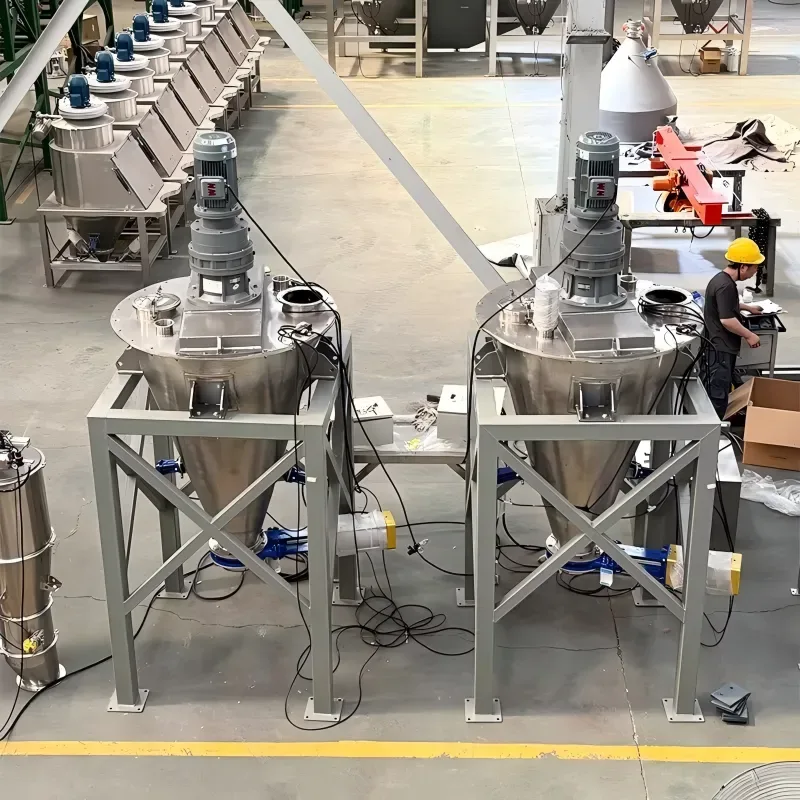

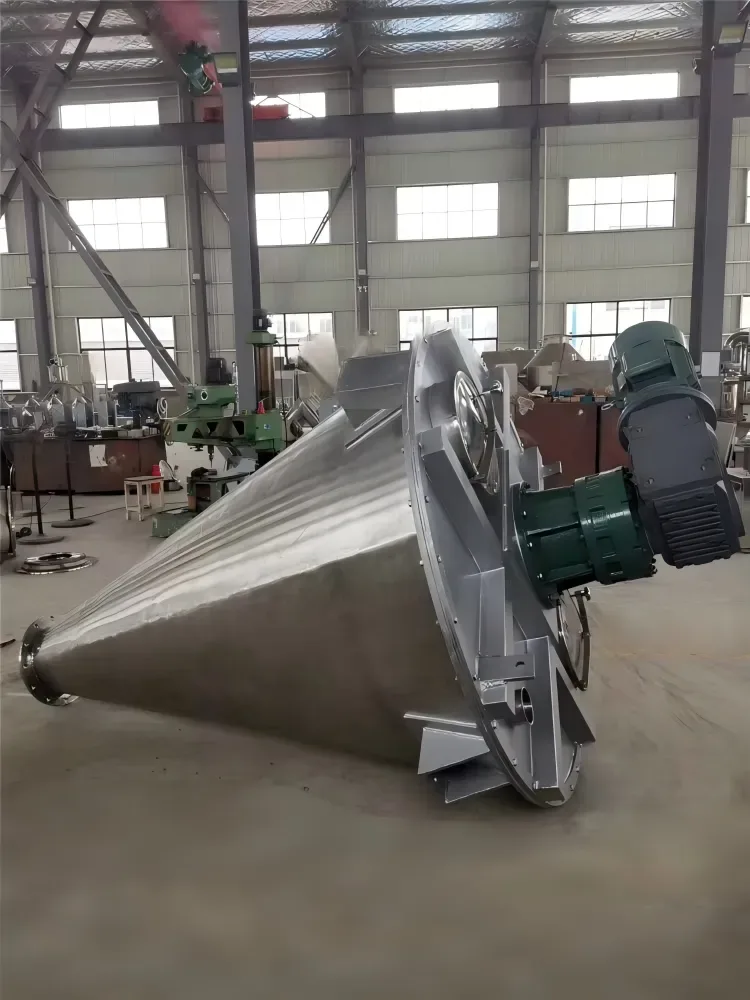

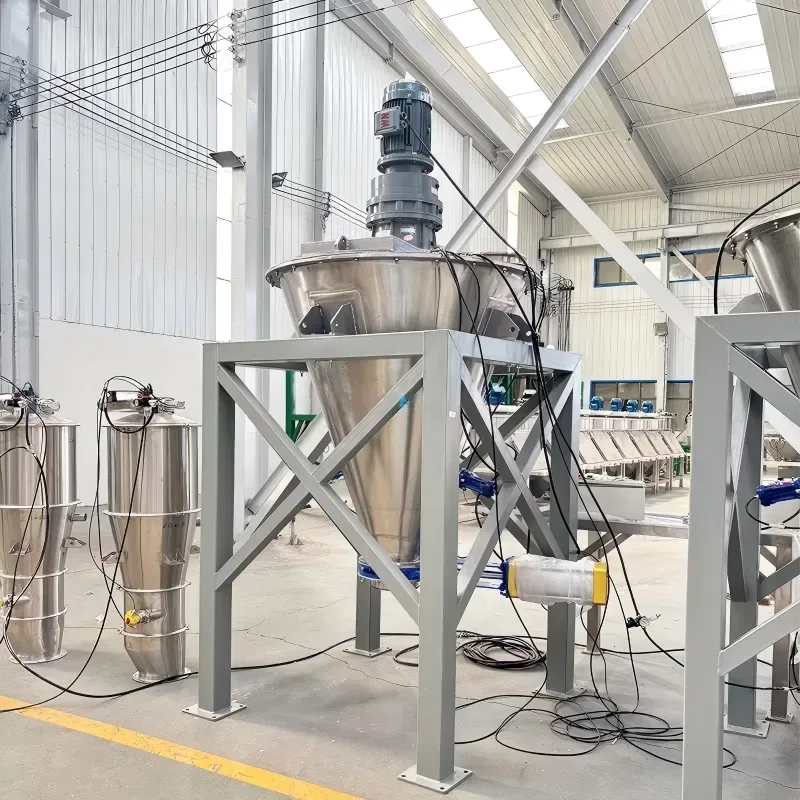

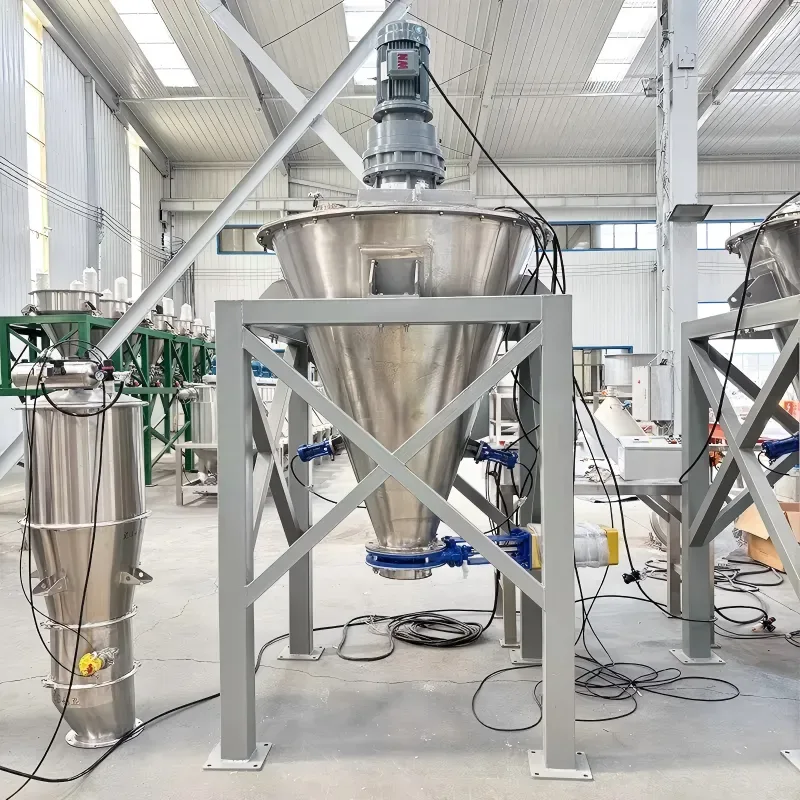

Conical Twin-Screw Mixer
Conical twin-screw mixer whose two orbiting screws lift material up the cone for fast, gentle, shear-free blending of powders.
Overview
The conical twin-screw mixer has a conical vessel containing two spiral screws mounted on a rotating arm. Each screw turns to lift material upward while the arm revolves the screws around the cone, producing fast, gentle and highly uniform mixing of powders without shear or segregation.
Features
- Fast, gentle mixing with no segregation or damage to granules
- High mixing uniformity
- Low energy use, since the screws lift the material at low power
- Large effective volume
- Optional spray and heating or cooling jacket
Working Principle
The two screws rotate to convey material upward along the cone wall, while the boom arm slowly revolves them through the whole charge. The combination of each screw's self-rotation and the arm's revolution creates a convective, shear-free mixing action that blends the components evenly.
Technical Specifications
| Model | DSH-0.1 | DSH-0.3 | DSH-0.5 | DSH-1.0 | DSH-1.5 | DSH-2.0 | DSH-3.0 | DSH-4.0 | DSH-5.0 | DSH-6.0 | DSH-8.0 | DSH-10 | DSH-15 | DSH-20 | DSH-25 | DSH-30 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Total Volume (m³) | 0.1 | 0.3 | 0.5 | 1.0 | 1.5 | 2.0 | 3.0 | 4.0 | 5.0 | 6.0 | 8.0 | 10 | 15 | 20 | 25 | 30 |
| Loading Coefficient | ≤0.6 | |||||||||||||||
| Installed Power (kW) | 1.5 | 2.2 | 3 | 4 | 5.5 | 5.5 | 7.5 | 11 | 15 | 15 | 18.5 | 20.7 | 24.2 | 41 | 41 | 52.5 |
| Overall Dimensions (mm) | 1569φ702 | 1929φ920 | 2322φ1124 | 2869φ1480 | 3140φ1633 | 3489φ1816 | 3747φ2210 | 4362φ2280 | 4576φ2402 | 4900φ2582 | 5405φ2805 | 5795φ3018 | 6475φ3450 | 7535φ3805 | 7995φ4078 | 8385φ4330 |
| Weight (kg) | 250 | 550 | 660 | 1200 | 1350 | 1500 | 2300 | 2520 | 3000 | 3150 | 4500 | 5500 | 6600 | 7000 | 8500 | 9200 |
Applications
Powders and granules requiring gentle mixing in the pharmaceutical, food, chemical, feed and pesticide industries.
