Trough Mixer
U-shaped trough mixer with rotating blades that knead wet or dry powders and pastes into a uniform blend, often ahead of granulation.
Overview

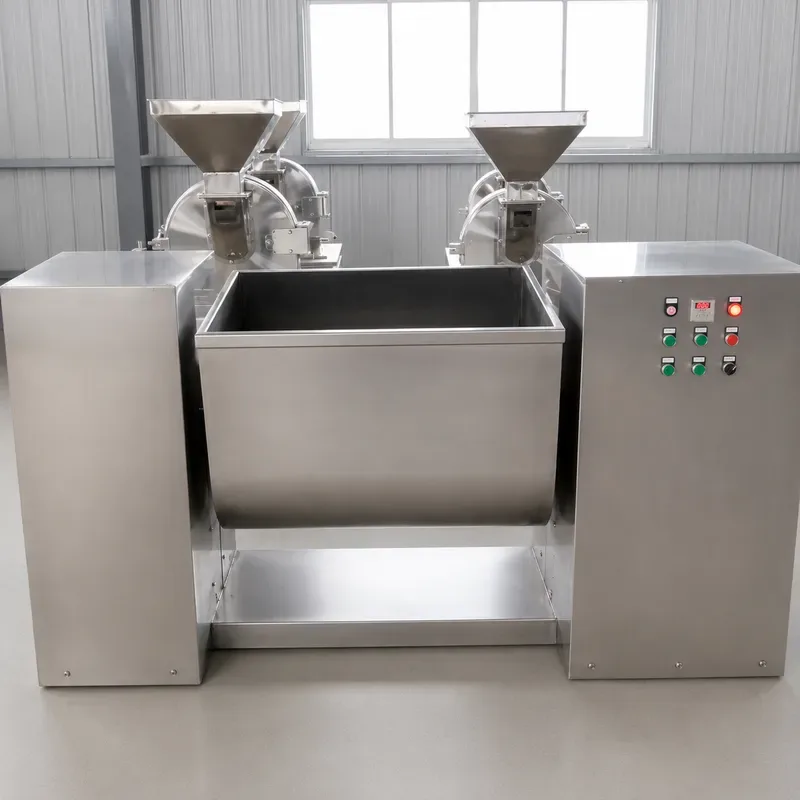

The trough mixer uses a U-shaped horizontal trough with rotating blades that knead and turn wet or dry powders and pastes into a uniform mixture. It is widely used ahead of granulation, where damp powders must be blended evenly before being formed into granules.
Features
- U-shaped trough with kneading-type blades for thorough mixing
- Handles viscous and damp materials as well as dry powders
- Tilting trough for fast, easy discharge
- Stable, simple operation
- Stainless-steel contact parts
Working Principle

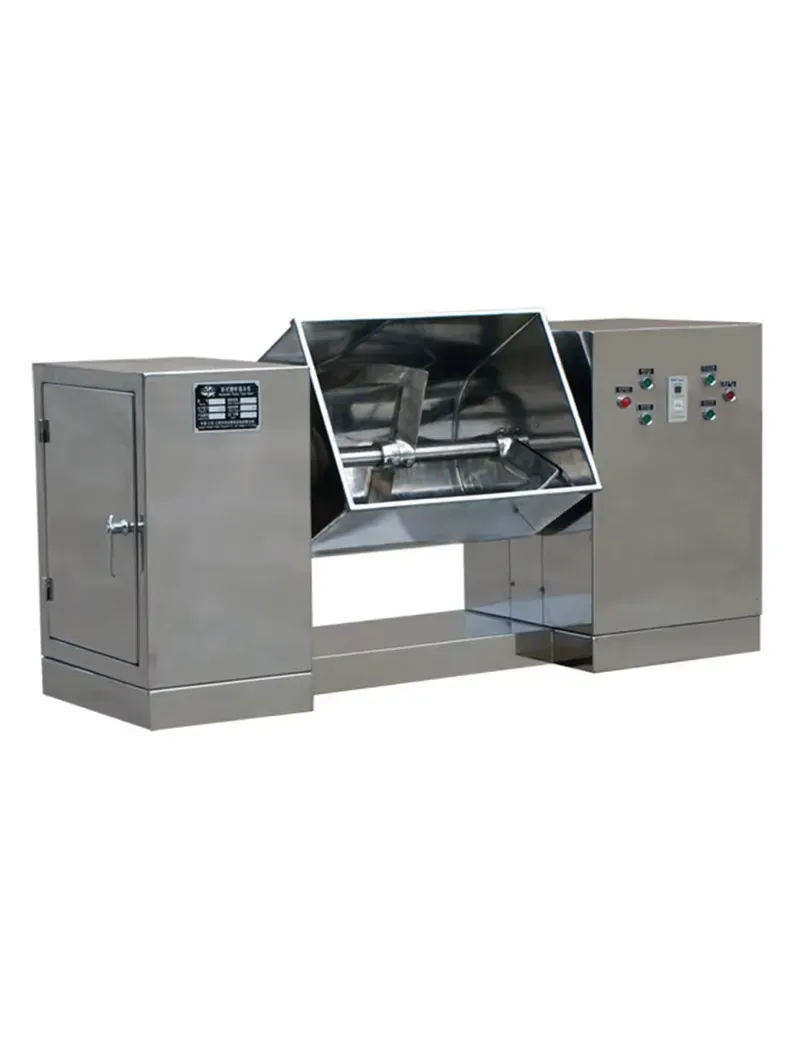

Blades rotating inside the U-trough repeatedly cut, fold and turn the material, dispersing the components until they form a homogeneous mixture. When mixing is complete, the trough is tilted to discharge the batch.
Technical Specifications
| Model | 100 | 150 | 200 |
|---|---|---|---|
| Capacity (L) | 100 | 150 | 200 |
| Motor Power (kW) | 2.2 | 3 | 3 |
| Overall Dimensions (mm) | 1400×580×1000 | 1600×600×1050 | 1870×650×1065 |
| Stirring Speed (rpm) | 24 | ||
| Discharge Angle (°) | 105 | ||
| Weight (kg) | 350 | 500 | 650 |
Applications
Mixing of powders and pastes in the pharmaceutical, food and chemical industries, especially wet mixing before granulation.
