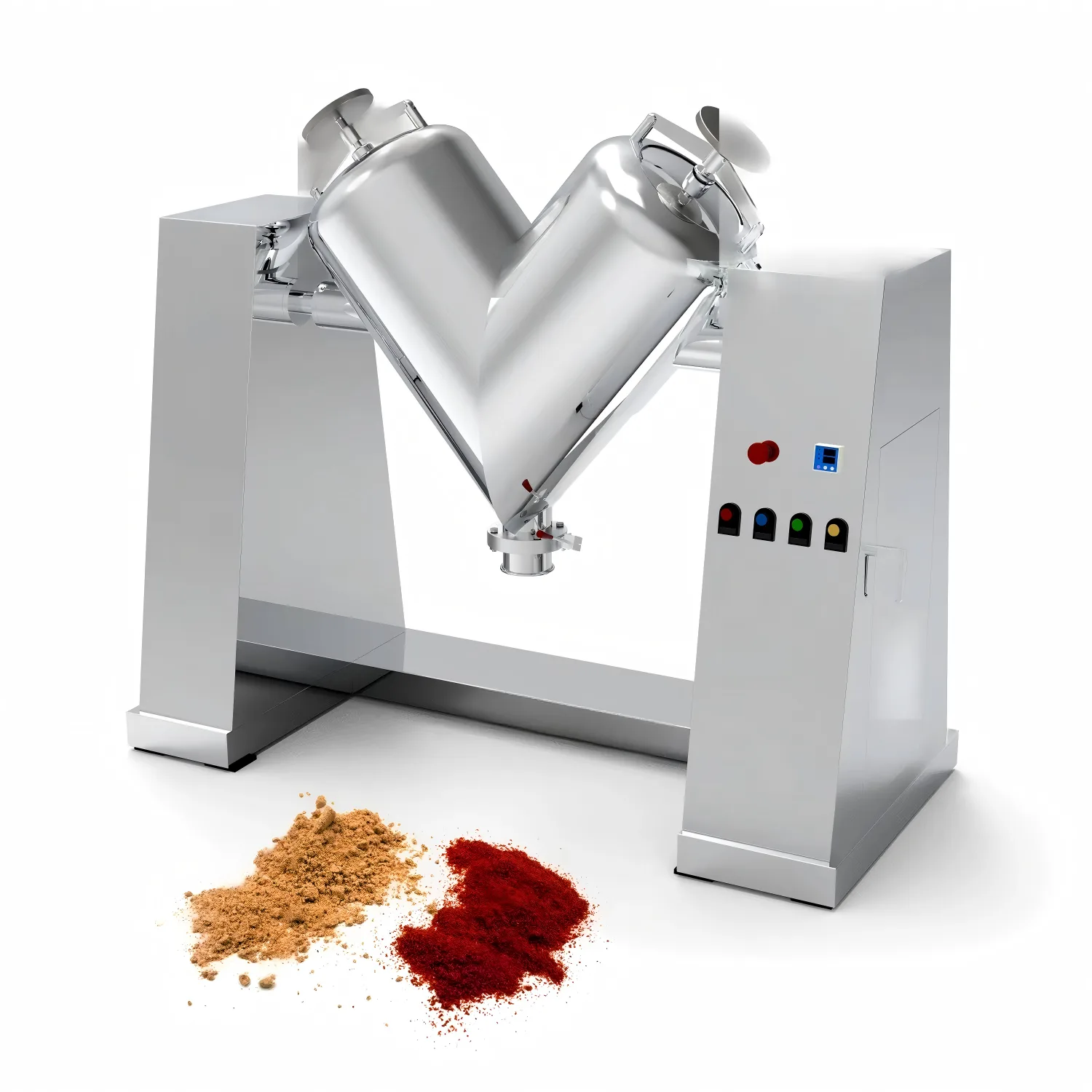

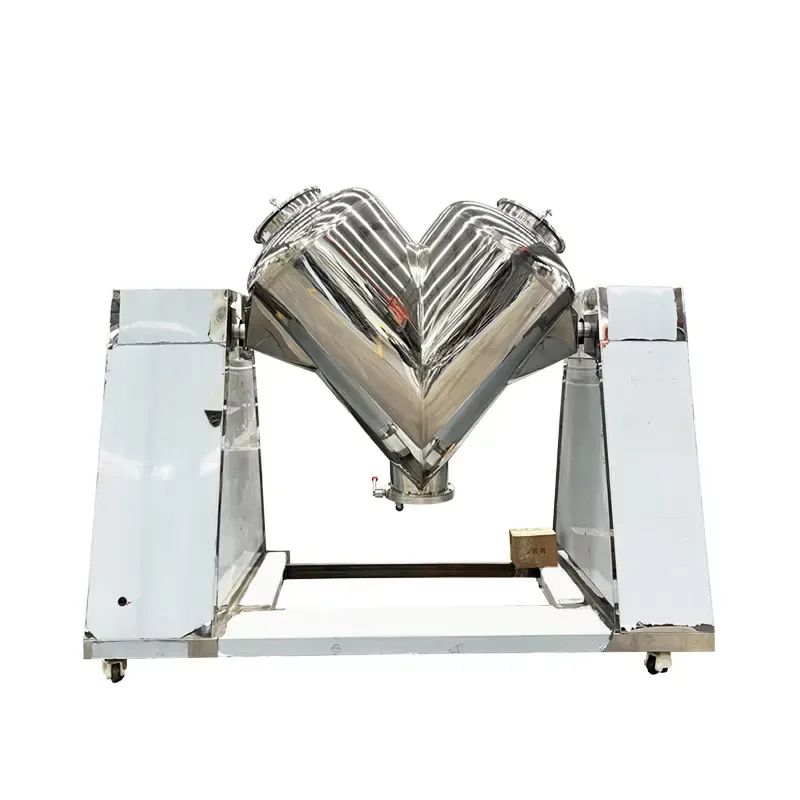

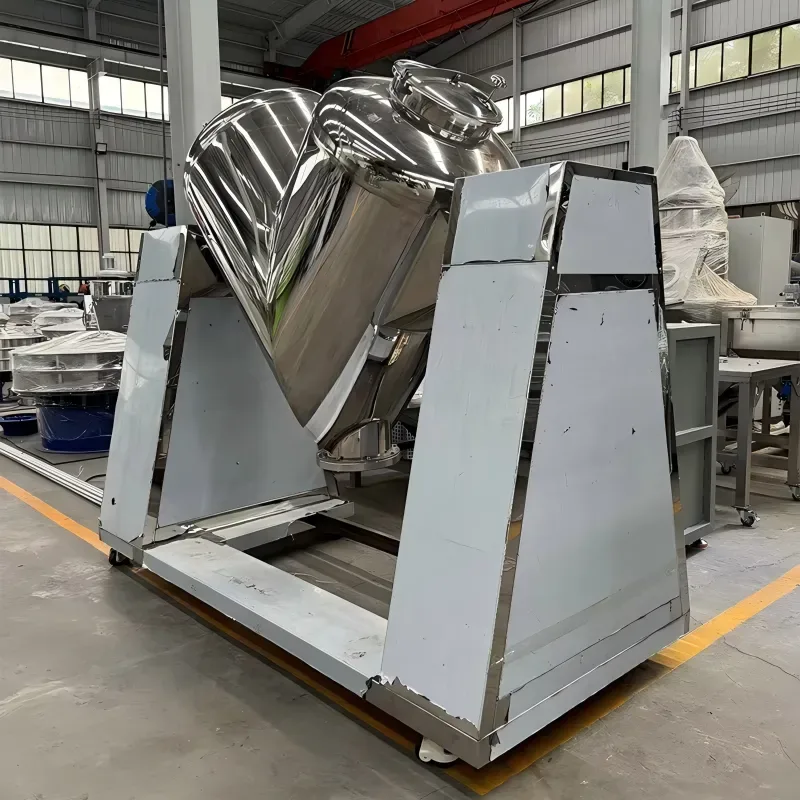

V-type Mixer
V-type tumbling mixer that blends dry powders and granules gently and uniformly, with a matched vacuum pump for operation under reduced pressure.
Overview
The V-type mixer blends dry powders and granules through a gentle tumbling action that turns and redistributes the material without shear. Each size is supplied with a matched vacuum pump, allowing the mixer to run under reduced pressure when the process calls for it.
Features
- Gentle tumbling with no shear, protecting fragile granules
- High mixing uniformity with no dead corners
- Large loading ratio and short mixing cycle
- Easy, residue-free discharge
- Supplied with a matched vacuum pump for vacuum operation
Working Principle
The vessel rotates so the material is continuously folded and redistributed in changing directions, producing a uniform blend. Where required, the matched vacuum pump draws the chamber down to reduced pressure, which helps de-aerate the powder or assist gentle drying during mixing.
Technical Specifications
| Model | VHJ-0.18 | VHJ-0.3 | VHJ-0.5 | VHJ-1.0 | VHJ-1.5 | VHJ-2.0 | VHJ-2.5 | VHJ-3.0 | VHJ-4.0 | VHJ-5.0 | VHJ-6.0 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Production Capacity (kg/batch) | 90 | 150 | 250 | 500 | 750 | 1000 | 1250 | 1500 | 2000 | 2500 | 3000 |
| Matching Vacuum Pump Model | W2 | W2 | W2SK-1.5 | W3SK-3 | W3SK-3 | W3SK-3 | W3SK-6 | W4SK-6 | W4SK-9 | W4SK-9 | W4SK-12 |
| Feeding Time (min) | 3-5 | 3-5 | 4-6 | 6-9 | 6-10 | 8-13 | 8-15 | 8-12 | 10-15 | 15-20 | 18-25 |
| Mixing Time (min) | 4-8 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 8-12 | 8-12 | 8-12 | 8-12 |
| Total Volume (m³) | 0.18 | 0.3 | 0.5 | 1.0 | 1.5 | 2.0 | 2.5 | 3.0 | 4.0 | 5.0 | 6.0 |
| Stirring Speed (r/min) | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 10 | 10 | 10 | 10 |
| Motor Power (kW) | 1.1 | 1.1 | 2.2 | 4 | 4 | 5 | 7.5 | 7.5 | 11 | 15 | 18.5 |
| Rotation Height (mm) | 1580 | 1760 | 2400 | 2840 | 3010 | 3240 | 3680 | 3700 | 4350 | 4800 | 5300 |
| Weight (kg) | 280 | 320 | 550 | 950 | 1020 | 1600 | 2040 | 2300 | 2800 | 3250 | 3850 |
Applications
Dry powders and granules in the pharmaceutical, food, chemical and feed industries.
