Two-Dimensional Motion Mixer
Two-dimensional motion mixer whose drum rotates while swinging side to side, giving uniform mixing of large batches of powder or granules.
Overview

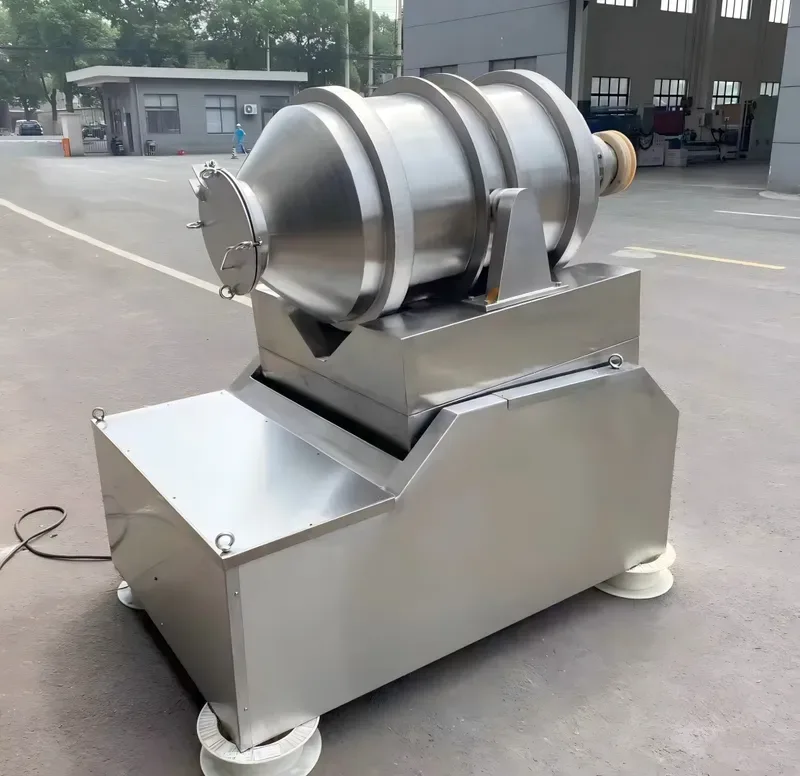

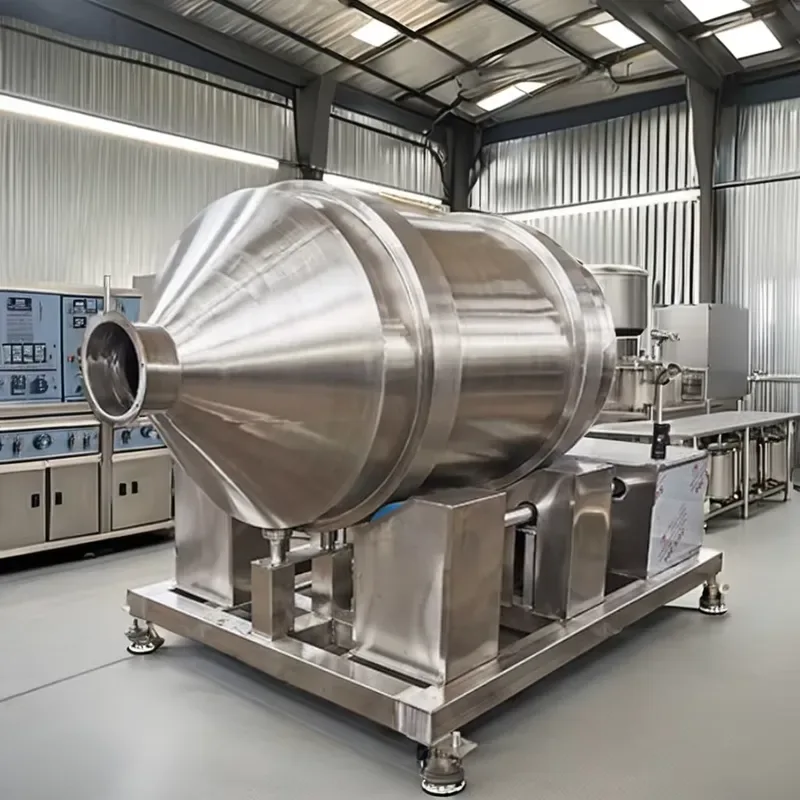

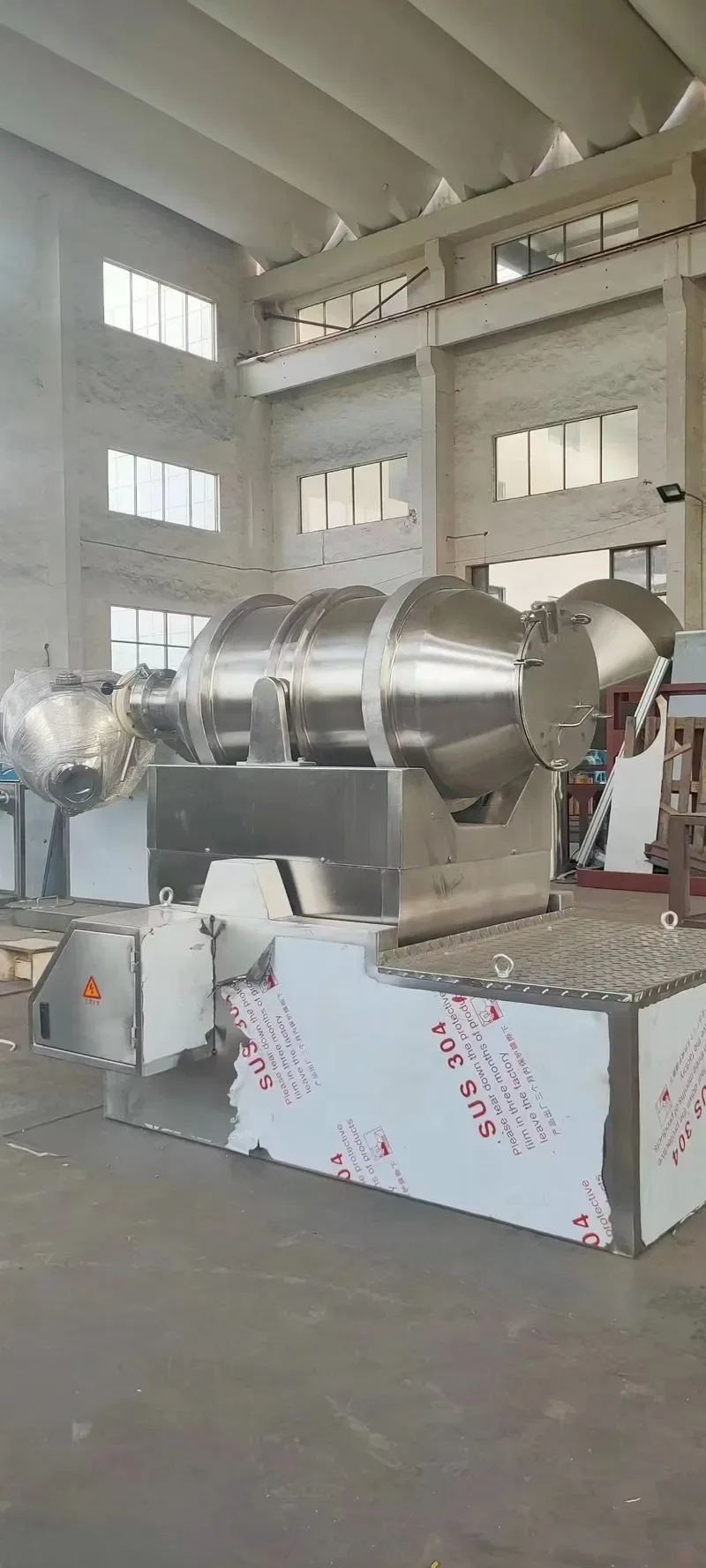

In the two-dimensional motion mixer, the drum rotates while a swing frame moves it back and forth, giving the material two-dimensional motion: rotational turning plus left-and-right swinging. The combination mixes large batches of powder or granules uniformly.
Features
- Suited to large-volume mixing
- Two-directional motion for fast, uniform blending
- Simple, robust structure with a large loading capacity
- Gentle low-speed action that protects granules
- Easy discharge
Working Principle

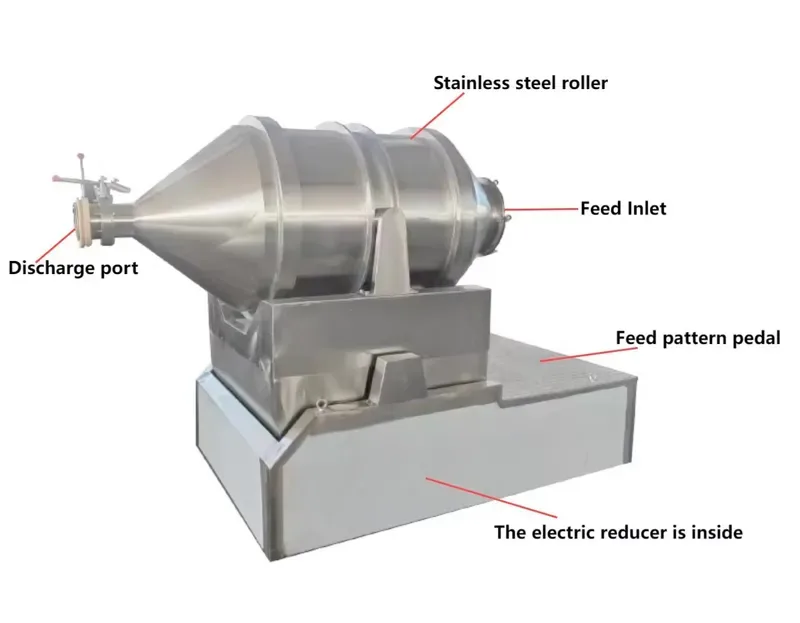

The rotating drum tumbles the material while the swing frame moves it from side to side. The two motions combine so the material is continuously turned and redistributed, blending the components evenly throughout a large charge.
Technical Specifications
| Model Specification | EYH100 | EYH300 | EYH600 | EYH800 | EYH1000 | EYH1500 | EYH2000 | EYH2500 | EYH3000 | EYH5000 | EYH10000 | EYH12000 | EYH15000 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Volume (L) | 100 | 300 | 600 | 800 | 1000 | 1500 | 2000 | 2500 | 3000 | 5000 | 10000 | 12000 | 15000 |
| Loading Volume (L) | 50 | 150 | 300 | 400 | 500 | 750 | 1000 | 1250 | 1500 | 2500 | 5000 | 6000 | 7500 |
| Loading Weight (kg) | 40 | 75 | 150 | 200 | 350 | 550 | 750 | 950 | 1100 | 1800 | 3000 | 4000 | 5000 |
| Overall Dimension A (mm) | 860 | 1000 | 1300 | 1400 | 1500 | 1800 | 2000 | 2200 | 2400 | 2700 | 3200 | 3400 | 3500 |
| Overall Dimension B (mm) | 900 | 1100 | 1250 | 1350 | 1390 | 1550 | 1670 | 1850 | 1910 | 2290 | 2700 | 2800 | 3000 |
| Overall Dimension C (mm) | 200 | 200 | 240 | 240 | 240 | 240 | 240 | 240 | 280 | 300 | 360 | 360 | 360 |
| Overall Dimension D (mm) | 400 | 580 | 720 | 810 | 850 | 980 | 1100 | 1160 | 1220 | 1440 | 1800 | 1910 | 2100 |
| Overall Dimension M (mm) | 1000 | 1400 | 1800 | 1970 | 2040 | 2340 | 2540 | 2760 | 2960 | 3530 | 4240 | 4860 | 5000 |
| Overall Dimension H (mm) | 1500 | 1650 | 1850 | 2100 | 2180 | 2280 | 2440 | 2600 | 2640 | 3000 | 4000 | 4200 | 4400 |
| Power - Rotation (kW) | 1.1 | 1.1 | 1.5 | 1.5 | 2.2 | 3 | 3 | 4 | 5 | 7.5 | 15 | 15 | 18.5 |
| Power - Swing (kW) | 0.75 | 0.75 | 1.1 | 1.1 | 1.5 | 1.5 | 2.2 | 2.2 | 4 | 5.5 | 11 | 11 | 15 |
Applications
Large-batch powders and granules in the pharmaceutical, chemical, food and feed industries.
