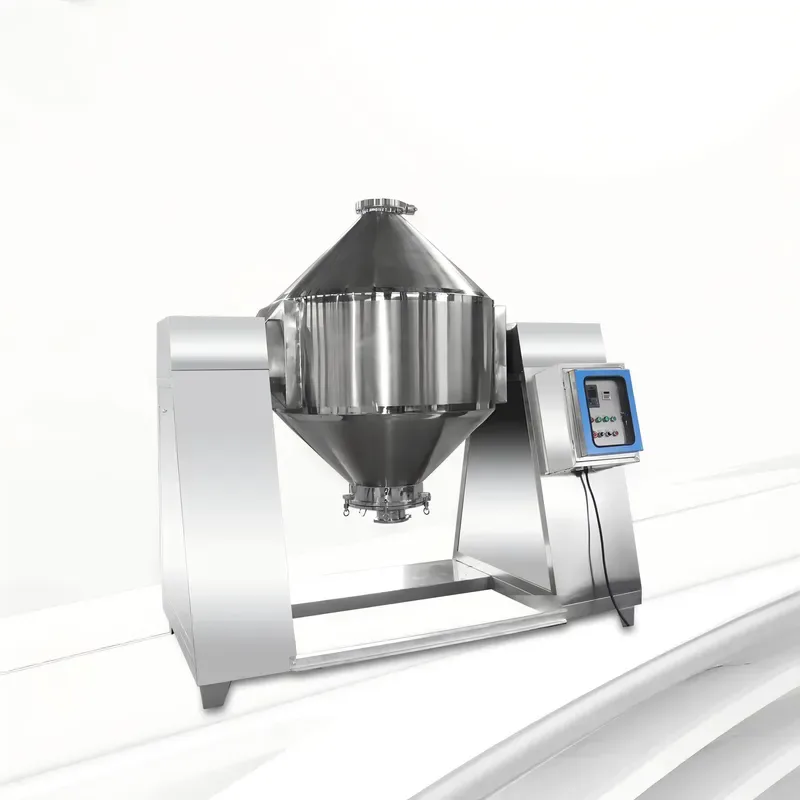

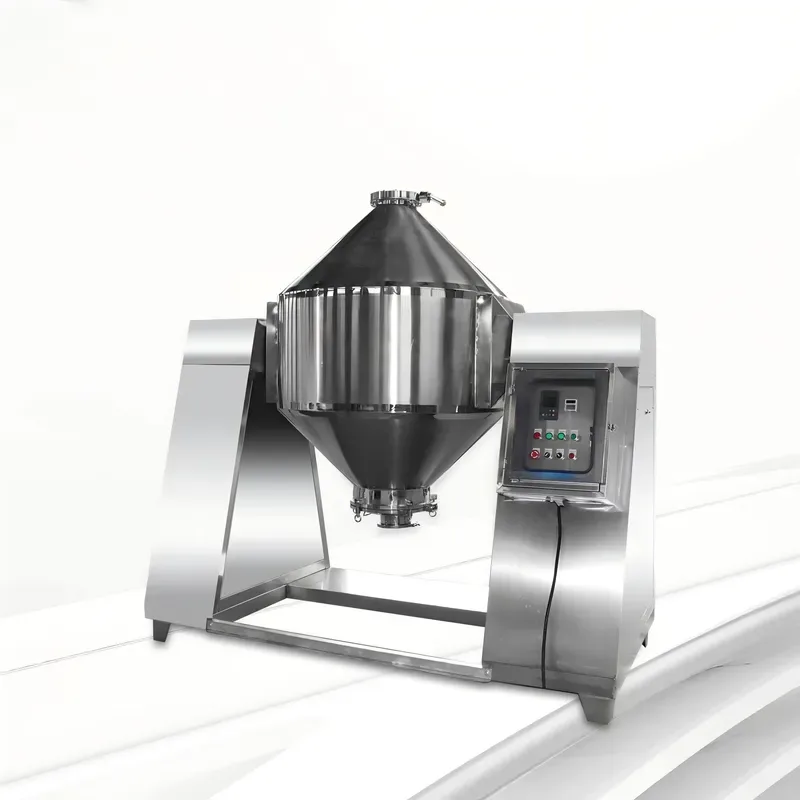

Double-Cone Mixer
Double-cone mixer that blends powders and granules by complex impact motion as the twin-cone vessel rotates.
Overview
The WHJ double-cone mixer is used to mix powder and granular materials in the pharmaceutical, chemical, food and building-materials industries. Material is loaded into the double-cone vessel by vacuum conveying or by hand, and as the vessel rotates the charge undergoes a complex impact motion that produces a uniform mix.
Features
- Twin-cone vessel for gentle, uniform mixing
- Vacuum-conveying or manual loading
- Energy-saving and efficient
- Low labor intensity and easy operation
- Easy discharge and cleaning
Working Principle
As the double-cone vessel rotates, the material repeatedly converges toward the center and diverges toward each cone, undergoing a complex impact motion that folds and redistributes the components until they are evenly blended.
Technical Specifications
| Type | WHJ 300 | WHJ 500 |
|---|---|---|
| Production Capacity (kg/batch) | 50-80 | 60-100 |
| Total Volume (m³) | 0.3 | |
| Mixing Time (min) | 4-8 | |
| Power (kW) | 1.1 | 2.2 |
| Drum Speed (r.p.m) | 20 | 12 |
| Overall Dimensions (mm) | 1680 ×650× 1600 | 2340× 1220× 2300 |
| Weight (kg) | 310 | 550 |
Applications
Powder and granular materials in the pharmaceutical, chemical, food and building-materials industries.
