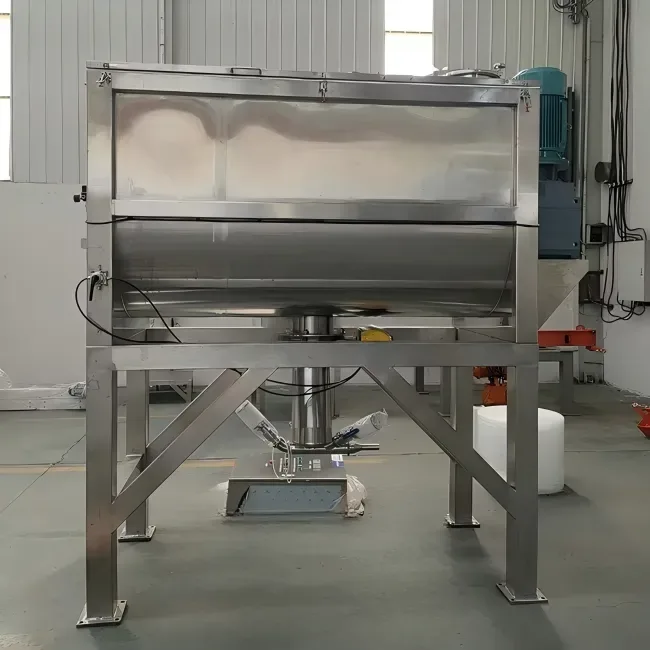

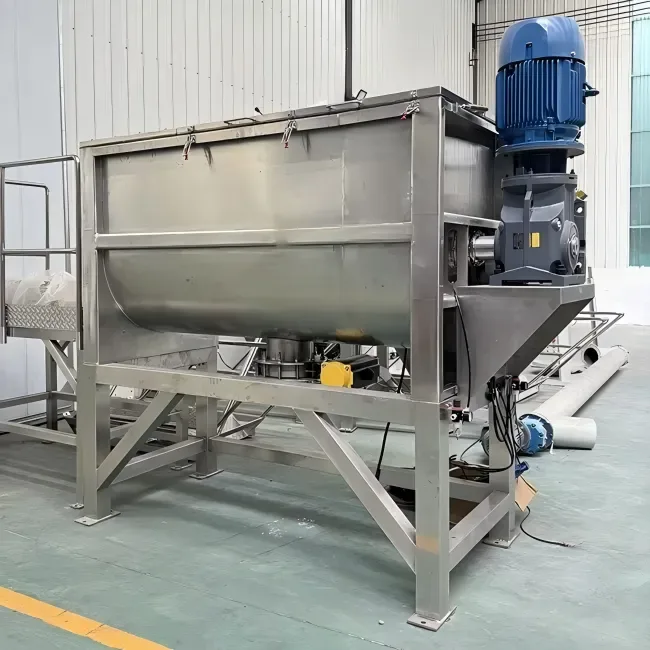

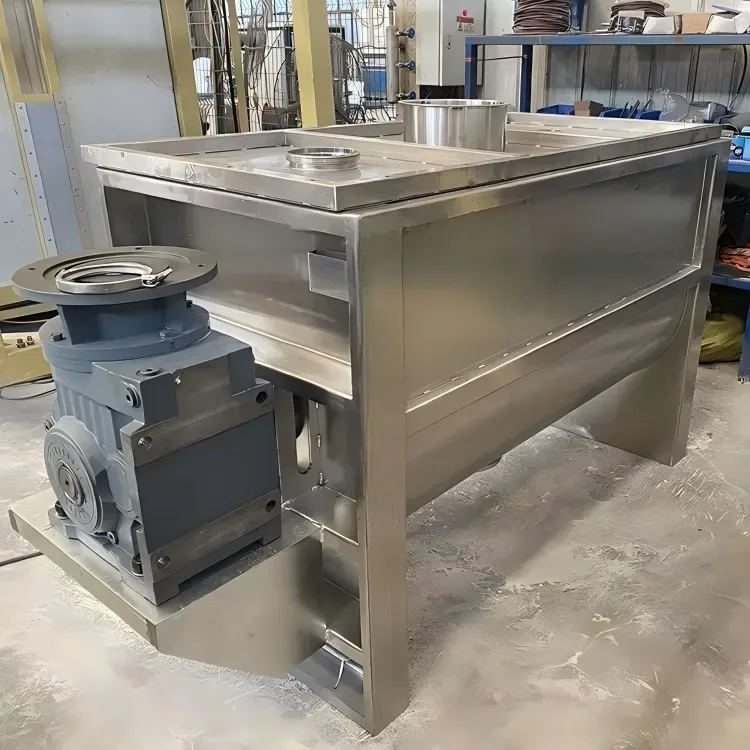

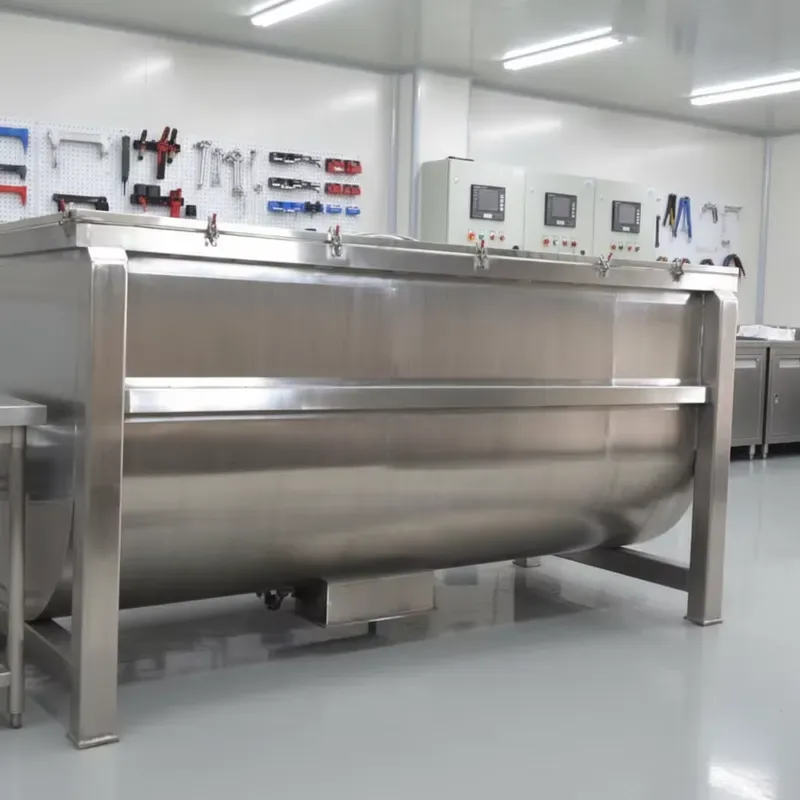

Horizontal Ribbon Mixer
Horizontal ribbon mixer with a double-helical agitator that convectively blends large batches of powders and granules.
Overview
The WLDH horizontal ribbon mixer uses a double-helical ribbon agitator turning in a horizontal U-trough. The outer and inner ribbons drive material in opposite axial directions, creating a strong convective flow that blends large batches of powders and granules quickly and evenly.
Features
- Double-helical ribbon for fast convective mixing
- Large batch volumes from 0.5 to 4 m³
- Gentle action with low residue
- Manual or pneumatic discharge valve
- Rugged construction for continuous duty
Working Principle
A double-helical ribbon rotates inside the horizontal U-trough. The outer spiral pushes material toward one end while the inner spiral pushes it back, so the charge is continuously turned and circulated, producing a rapid, uniform mix that discharges through a bottom valve. Mixing capacity is rated for powders of bulk density around 1, and selection should account for the material's mesh size and density.
Technical Specifications
| Model | WLD-0.5 | WLD-1.0 | WLD-2.0 | WLD-3.0 | WLD-4.0 |
|---|---|---|---|---|---|
| Motor Power (kW) | 5.5 | 11 | 15 | 18.5 | 22 |
| Total Volume (m³) | 0.5 | 1.0 | 2.0 | 3.0 | 4.0 |
| Spindle Speed (r/min) | 63 | 43 | 33 | 33 | 33 |
| Mixing Capacity (kg) | 150-350 | 300-700 | 600-1400 | 900-2100 | 1200-2800 |
| Overall Dimensions | 2372*812*1272 | 2700*1036*1574 | 3356*1236*1774 | 3356*1336*2024 | 4210*1414*2108 |
| Equipment Weight | 1050kg | 1760Kg | 2500Kg | 3400Kg | 4200Kg |
Applications
Powders and granules, and light pastes, in the chemical, food, pharmaceutical, feed and fertilizer industries.
