Oscillating Granulator
Oscillating granulator that forms wet powders into uniform granules by pressing them through a screen with an oscillating roller.
Overview

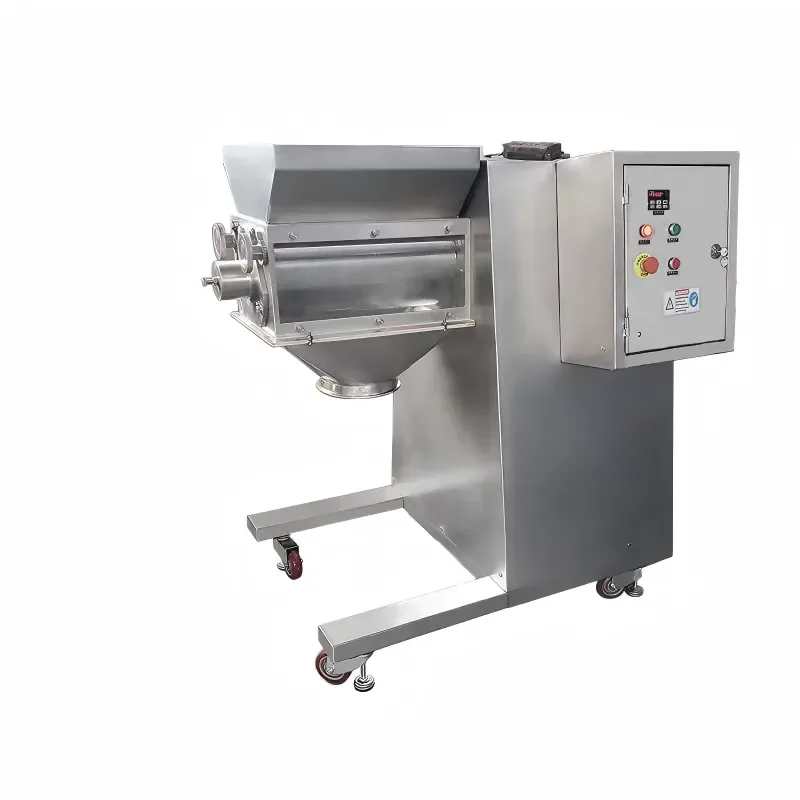

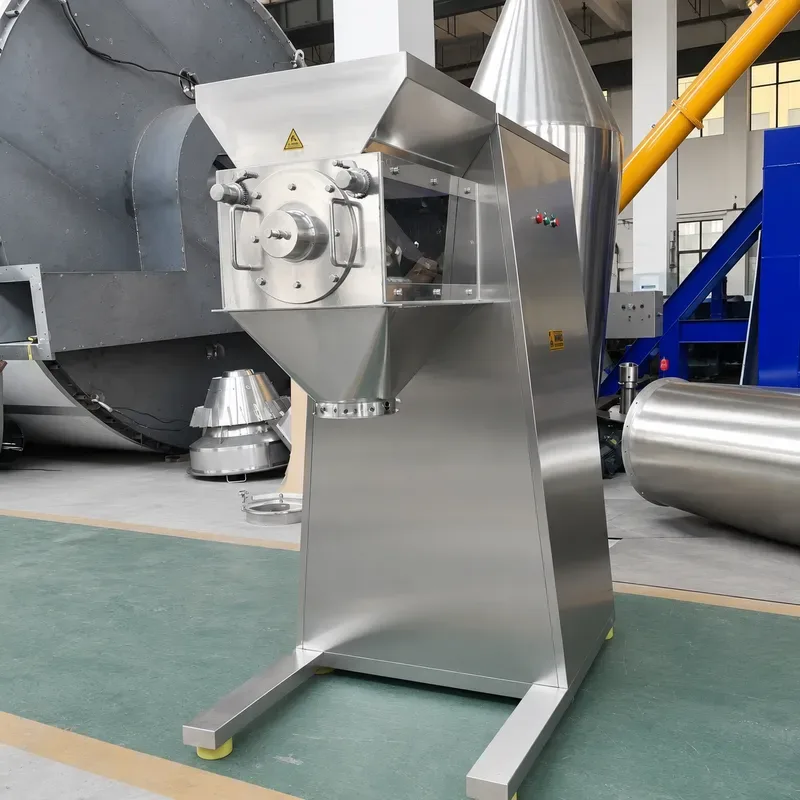

The YK oscillating granulator forms wet powders into granules by forcing the material through a screen with an oscillating roller. It is also used to size and break up dry cakes into uniform granules ahead of tableting.
Features
- Simple, reliable oscillating-roller mechanism
- Granule size set by the screen mesh
- Gentle action that produces uniform granules
- Quick screen change for different sizes
- Stainless-steel contact parts
Working Principle
A set of blades on an oscillating roller swings back and forth over a curved screen, pressing the wet mass through the mesh. The material is cut into granules of uniform size that fall to the outlet below.
Technical Specifications
| Model | YK160 | YK200 | YK300 |
|---|---|---|---|
| Production Capacity (kg/h) | 100-250 | 150-350 | 200-550 |
| Motor Power (kW) | 3 | 5.5 | 7.5 |
| Drum Diameter (mm) | 160 | 200 | 300 |
| Overall Dimensions (mm) | 1150X750X1150 | 1260×900×1150 | 1380×1000×1150 |
| Weight (kg) | 300 | 450 | 580 |
Applications
Wet granulation and dry-cake sizing for tableting in the pharmaceutical, food and chemical industries.
