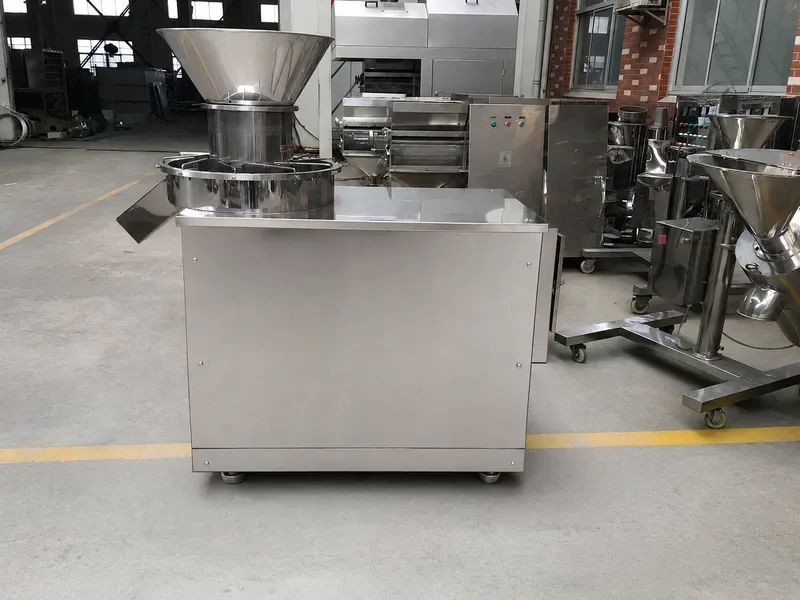

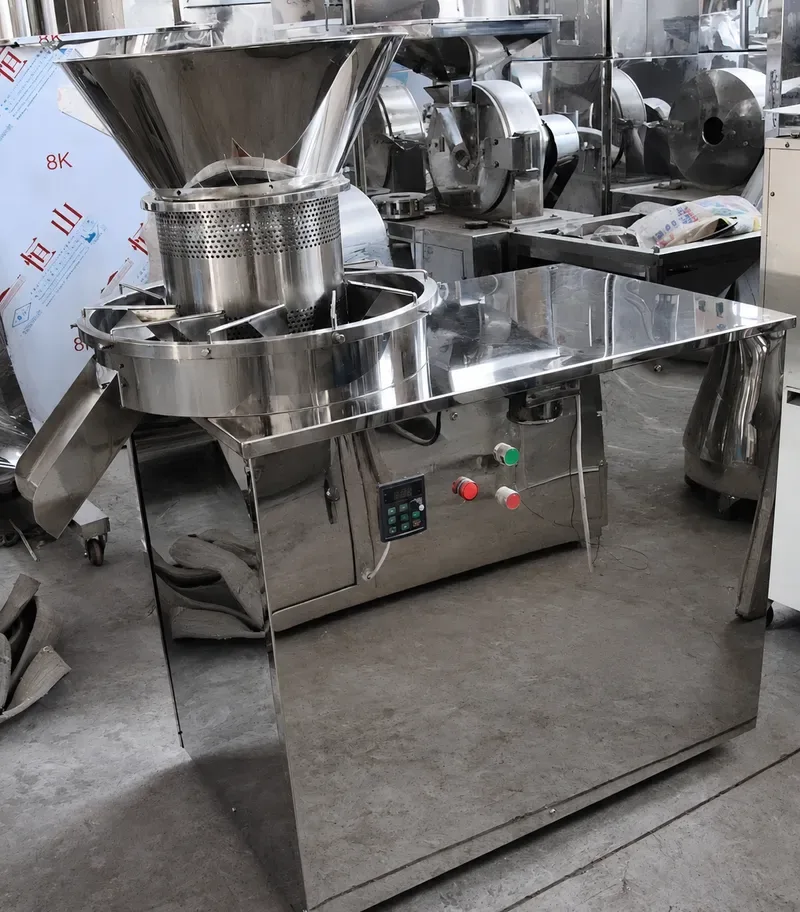

Rotary Granulator
Rotary granulator with a rotating cutter that presses mixed material through a screen into neat granules, ideal for highly viscous materials.
Overview
The ZLB rotary granulator turns well-mixed material into the required granules and is especially suited to highly viscous materials. All parts in contact with the material are made of stainless steel.
Features
- Stainless-steel contact parts with a neat appearance and rational structure
- High granule-forming rate with good-looking granules
- Automatic discharge that avoids the granule breakage of manual discharge
- Well suited to in-line production
- Particle diameter of Φ0.5-6 mm, adjustable to the user's need
Working Principle

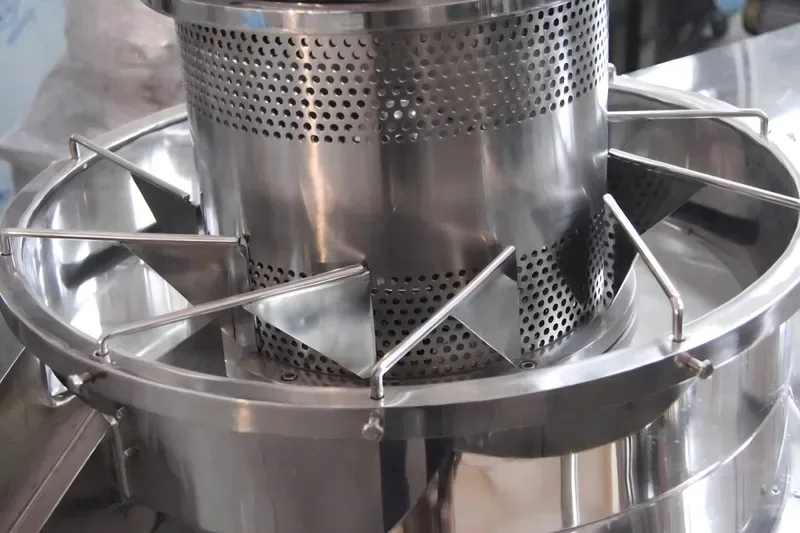

A rotating cutter presses the mixed material through a screen, forming granules of the set diameter. The granules are discharged automatically, protecting them from the breakage that manual discharge can cause.
Technical Specifications
| Cutter Size (mm) | 250 | 300 | 350 |
|---|---|---|---|
| Granule Diameter (mm) | Φ0.5-6 | Φ0.5-6 | Φ0.5-6 |
| Overall Dimensions (mm) | 700×540×1300 | 880×640×1300 | 1300×800×1200 |
| Motor Power (kW) | 4 | 5.5 | 7.5 |
| Weight (kg) | 350 | 400 | 780 |
| Production Capacity (kg/h) | 100-250 | 140-400 | 300-600 |
Applications
Pharmaceutical, food, instant-drink, chemical and solid-beverage industries, forming mixed material into granules, especially high-viscosity materials.
