Rapid Granule Sizer

Name: Rapid Granule Sizer
Brand: Zhengyuan

Rapid granule sizer that breaks up and regularizes dry or wet lumps into uniform granules at high speed using a bladed rotor over a screen.

Request Quote Email Us

Overview

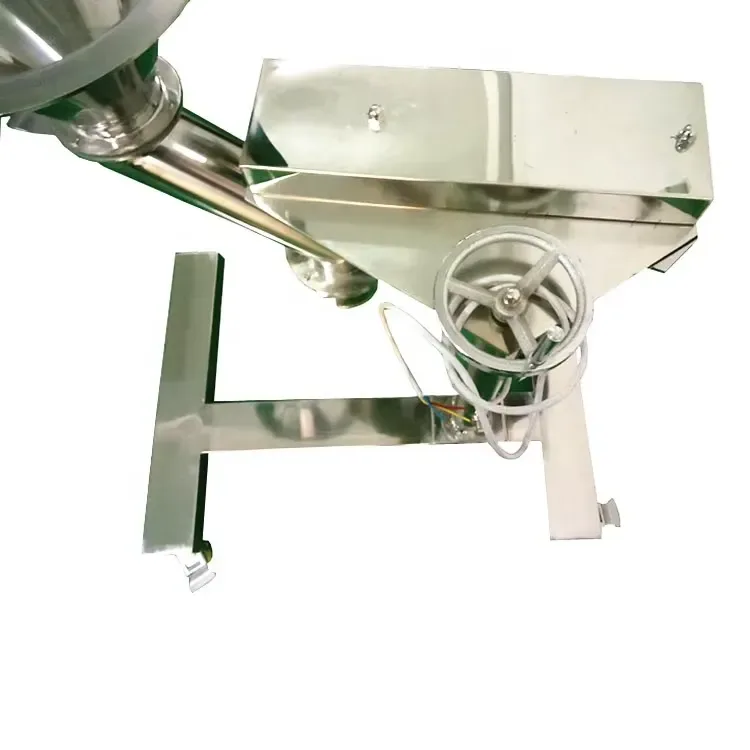

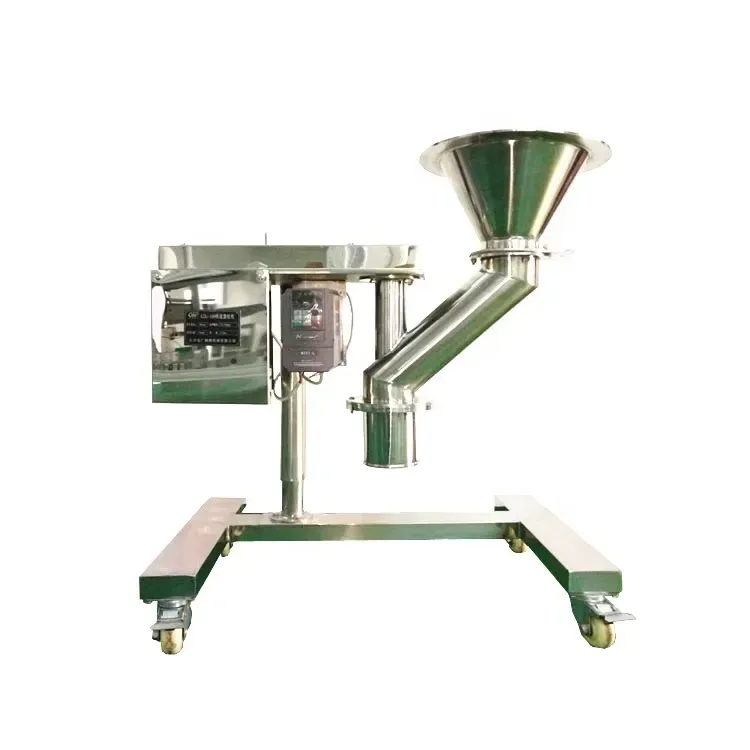

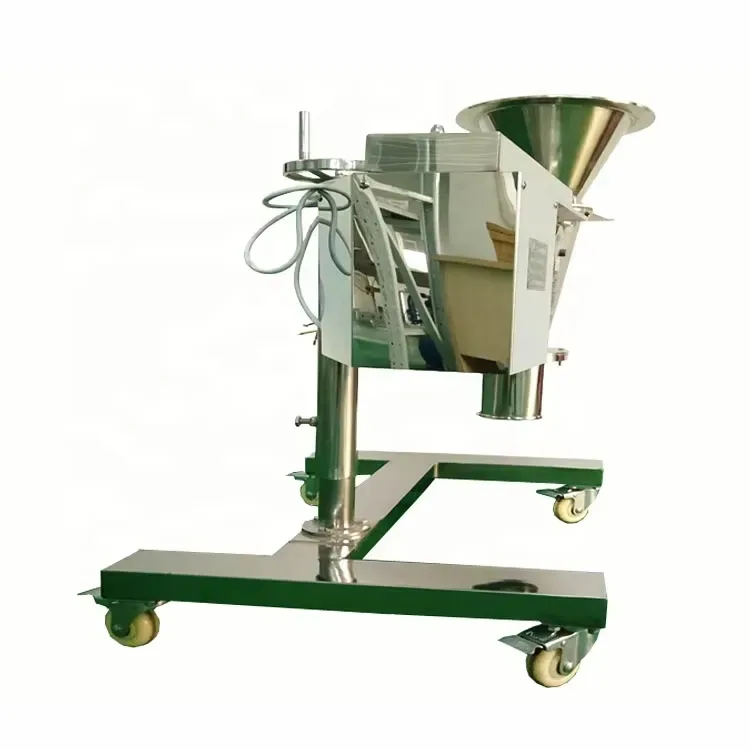

The KZL rapid granule sizer breaks up and regularizes dry or wet lumps into uniform granules at high speed, using a bladed rotor over a screen. It is used to size granules after drying and to mill cakes before tableting.

Features

High-speed sizing of dry or wet material
Uniform granule size set by the screen
Gentle on granules
Quick screen change for different sizes
Stainless-steel contact parts

Working Principle

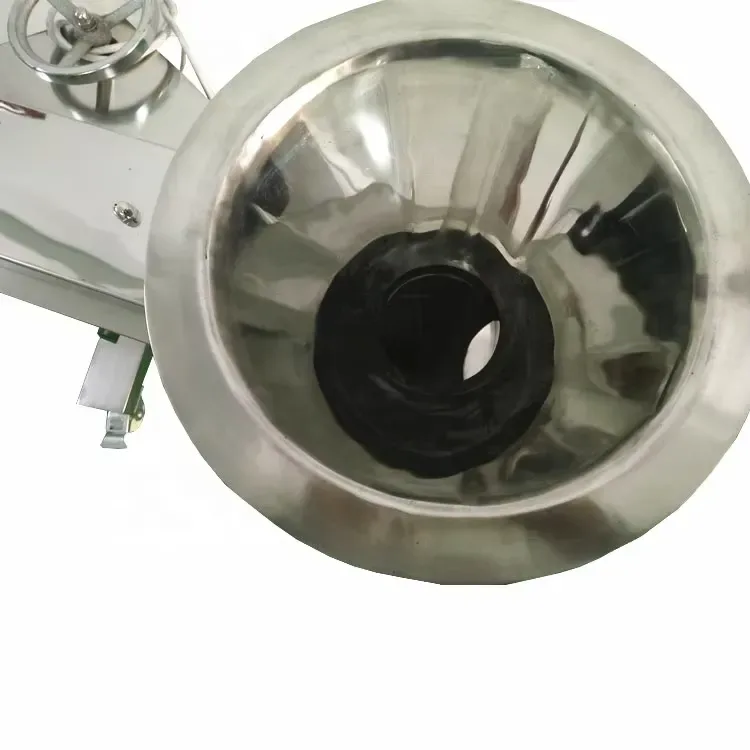

A rotor fitted with blades rotates at speed over a curved screen, cutting and pressing the lumps through the mesh. The material emerges as uniform granules at the outlet below.

Technical Specifications

Model	100	180	300
Stator Diameter (mm)	100	180	300
Stator Length (mm)	96	178	305
Production Capacity (kg/h)	20-150	100-1500	500-2500
Power (kW)	0.75	1.5	5.5
Speed (rpm)	180-1400	175-1400	200-1400

Applications

Granule sizing and cake milling for tableting in the pharmaceutical, food and chemical industries.
