Square-Cone Mixer
Square-cone mixer whose angled, closed vessel tumbles powders and granules three-dimensionally for up to 99% uniformity.
Overview

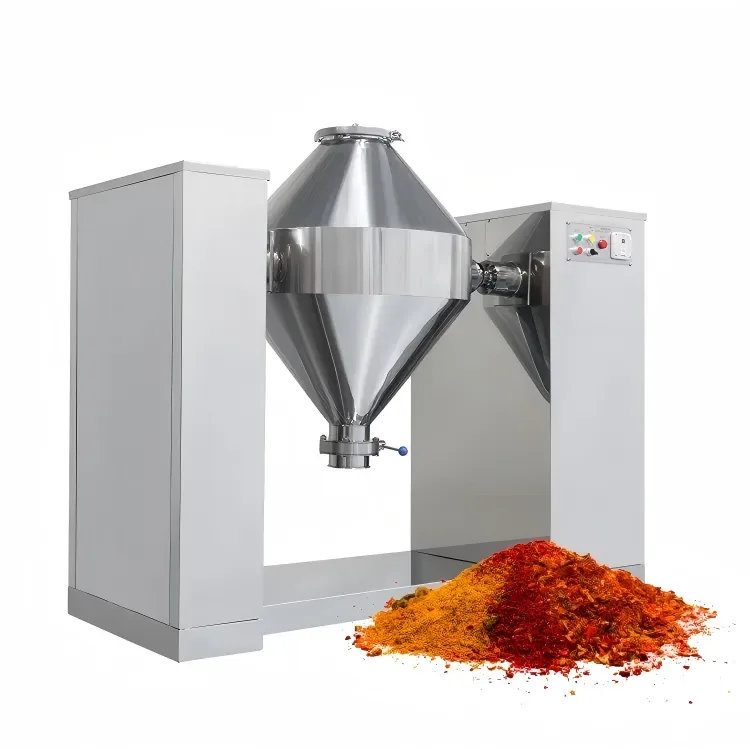

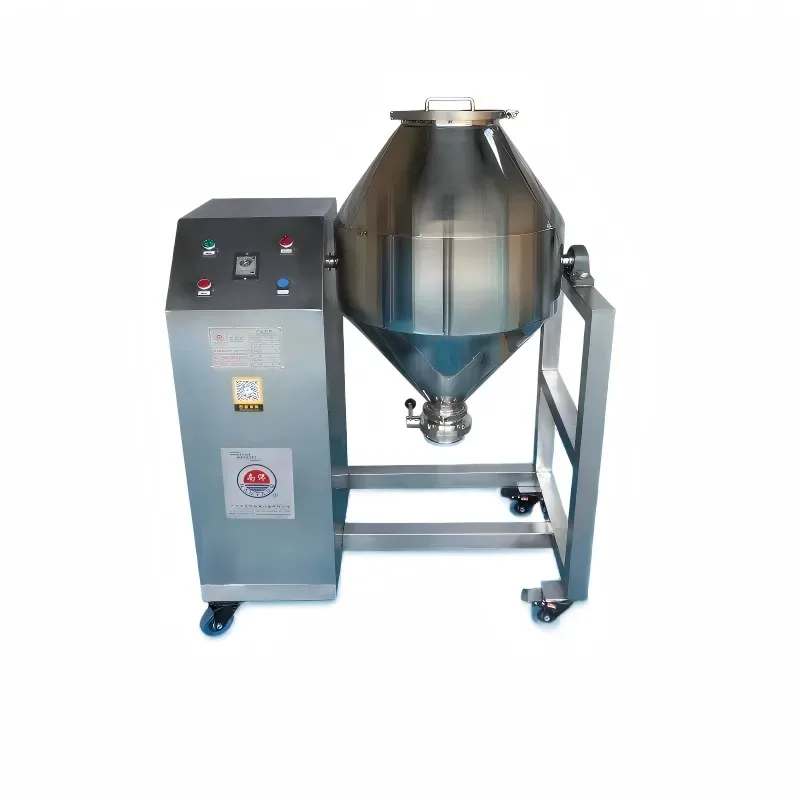

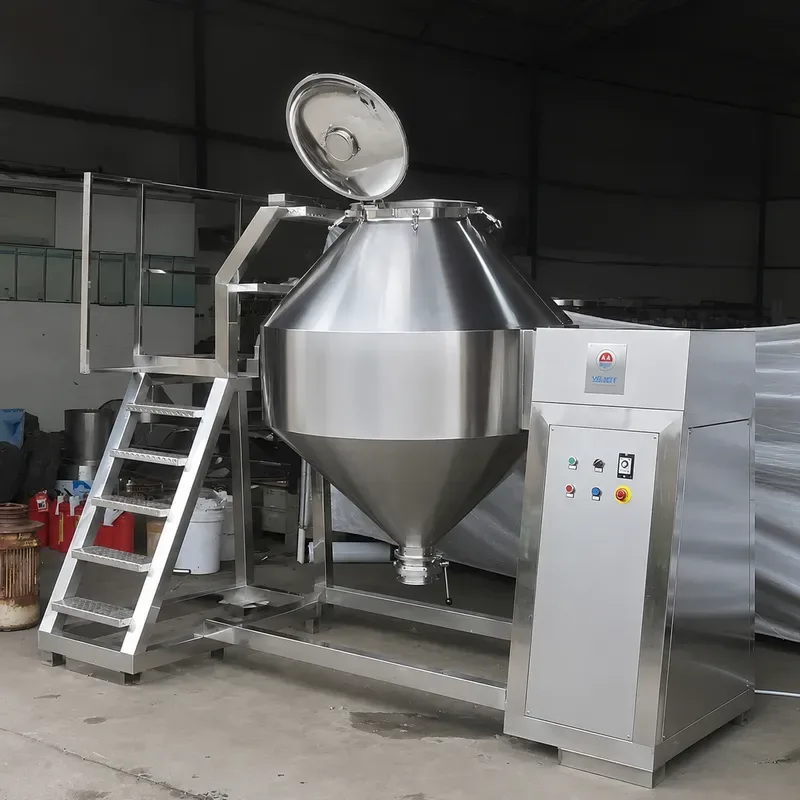

The FZH square-cone mixer is a versatile mixer used across the pharmaceutical, chemical, metallurgical, food, light-industry and feed sectors. Material is loaded into a closed square-cone vessel whose symmetry axis is set at an angle to the rotation axis, so the components move through three-dimensional space and blend to an excellent uniformity.
Features
- Mixing uniformity up to 99% with a volumetric fill factor up to 0.7
- Low rotation height with smooth, stable, reliable operation
- Mirror-polished inner and outer walls, free of dead corners
- Easy discharge and cleaning with no cross-contamination
- Meets GMP requirements
Working Principle
The square-cone vessel rotates about an axis inclined to the hopper's axis of symmetry. As it turns, the different components undergo three-dimensional motion, with strong tumbling combined with diffusion and contraction, producing a highly uniform mixture.
Technical Specifications
| Model | FZH-300 | FZH-500 | FZH-1000 | FZH-1500 | FZH-2000 | FZH-3000 |
|---|---|---|---|---|---|---|
| Total volume (L) | 300 | 500 | 1000 | 1500 | 2000 | 3000 |
| Charge volume (L) | 210 | 350 | 700 | 1050 | 1400 | 2100 |
| Charge weight (kg) | 150 | 250 | 500 | 750 | 1000 | 1500 |
| Main shaft speed (r/min) | 14 | 13 | 12 | 10 | 8 | 6 |
| Motor power (kW) | 1.5 | 2.2 | 4 | 5.5 | 7.5 | 11 |
| Inlet diameter (mm) | 380 | 380 | 560 | 560 | 560 | 560 |
| Outlet diameter (mm) | 200 | 200 | 200 | 200 | 200 | 200 |
| Overall dimensions L×W×H (mm) | 1850×1280×1970 | 2200×1550×2260 | 2800×2000×2850 | 2915×2300×2950 | 3160×2500×3200 | 3800×3200×3850 |
| Weight (kg) | 500 | 700 | 1000 | 1500 | 2000 | 3000 |
Applications
Powders and granules in the pharmaceutical, chemical, metallurgical, food, light-industry and feed sectors.
